The newly released Yanhua ACDP Module 42 is designed to work with Mini ACDP/ACDP-2 master module. It enables virginizing and data transfer operations for Mercedes-Benz DSM/DSM222 (FBS4) modules.
Main Features:
- Performs virginizing and data transfer for Mercedes FBS4 modules.
- Compatible with both ACDP2 and ACDP1 Master module.
Compatible Part Numbers:
- DSM (FBS4): A0002703252, A0002703352, A0002703452
- DSM222 (FBS4): A0002704252, A0002704452, A0002704652

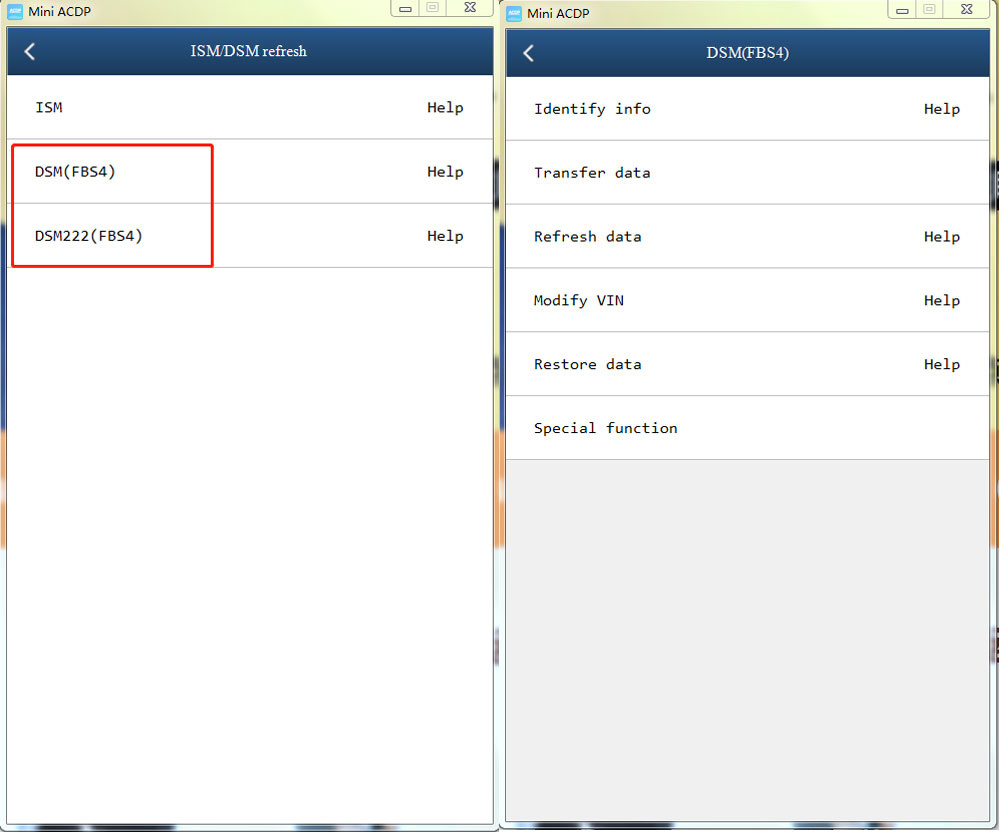

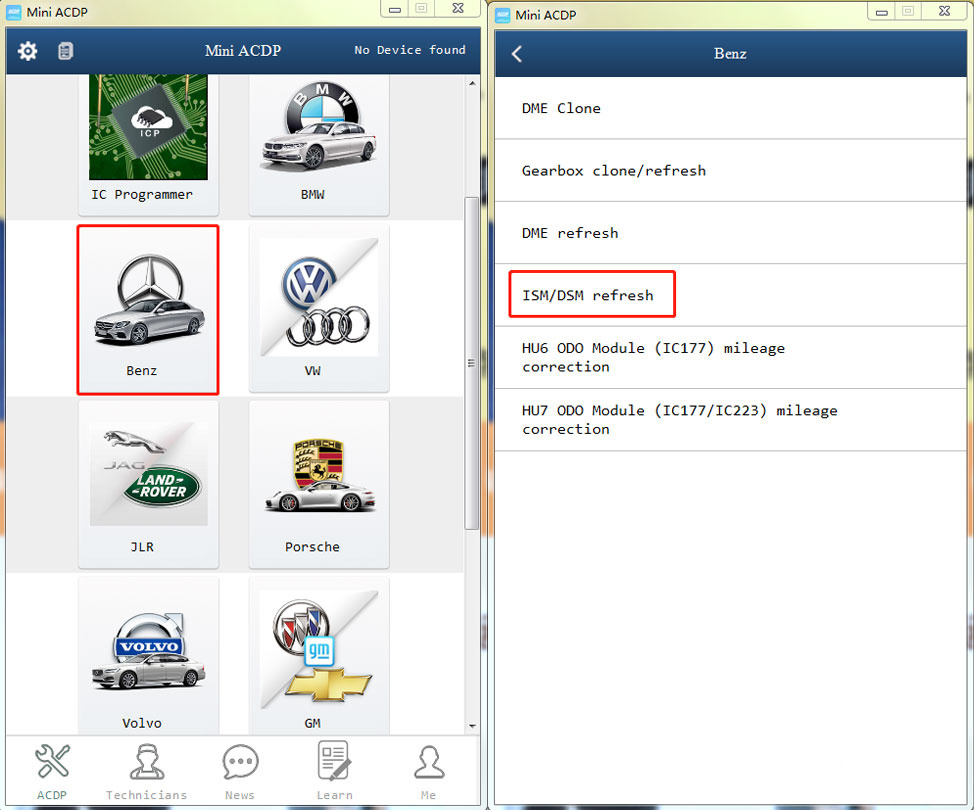

Mini ACDP App Menu Path:
Navigate through: Benz -> ISM/DSM refresh -> DSM (FBS4) or DSM222 (FBS4)
Available Functions:
- Identifyinfo
- Transfer data
- Refreshdata
- Modify VIN
- Restore data
- Special functions

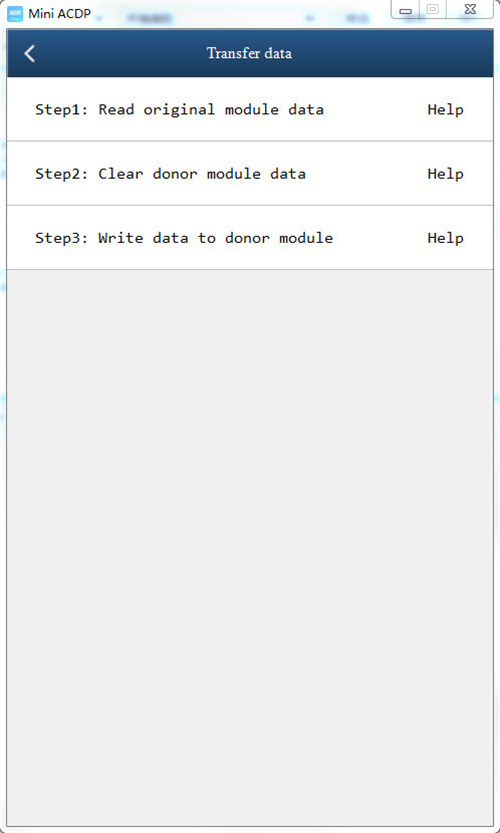

Data Transfer Procedure:
1. Read the data from the original module.
2. Clear the data on the donor (target) module.
3. Write the original data to the donor module.
Setup and Connection Instructions:

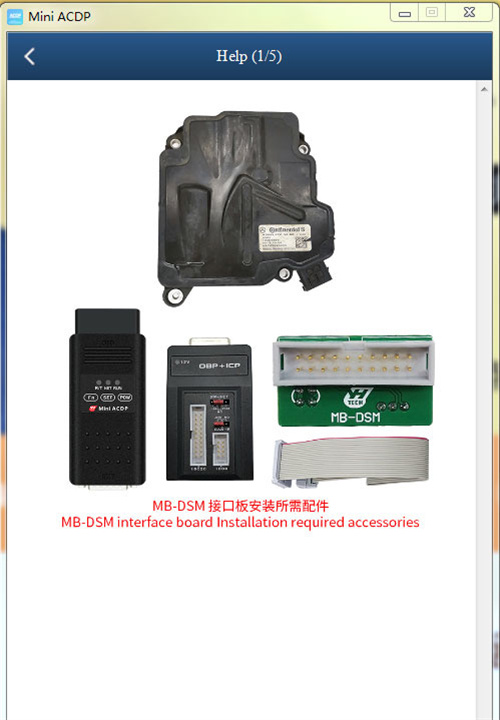

1. Required Equipment:
Ensure you have a Yanhua ACDP (with OBP+ICP Adapter) or a Yanhua ACDP2 master unit, Yanhua Module 42 interface board, and the target Mercedes-Benz DSM/DSM222 (FBS4) module.

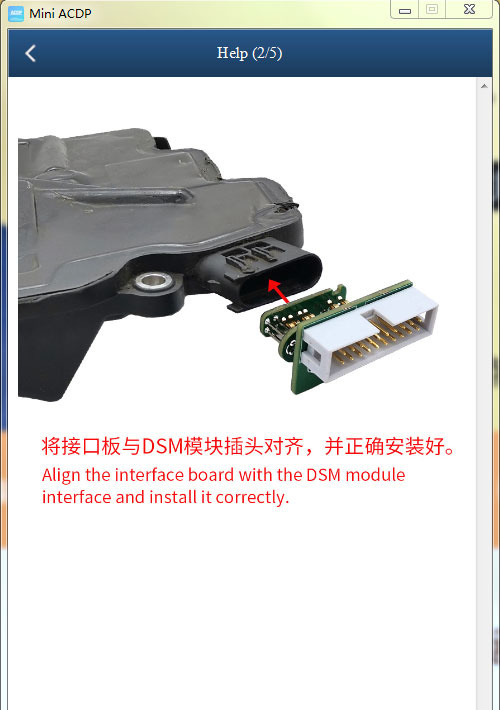

2. Module Connection:
Correctly align and firmly attach the interface board to the DSM/DSM222 module.

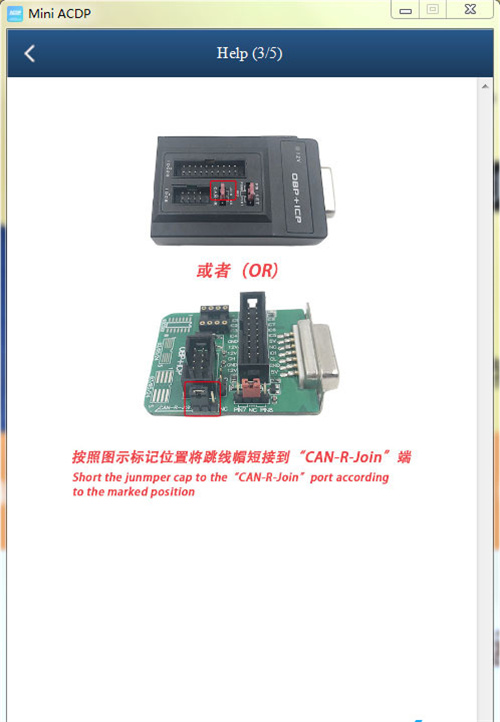

3. Jumper Setting:
Place the jumper cap on the designated “CAN-R-Join” port.

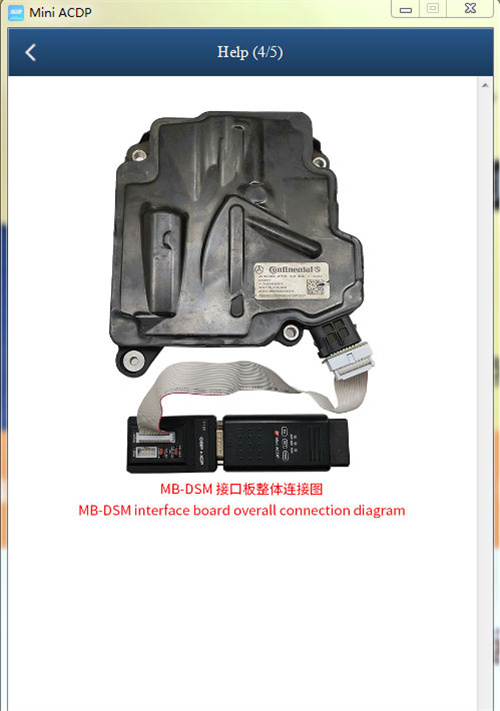

4. Final Connection:
Connect the assembled MB-DSM interface to your ACDP master device.
Yanhua Module 42 for MB DSM (FBS4) virgin/data transfer is available now.
