Great news for automotive locksmiths and technicians!
Yanhua Mini ACDP2 with Module 44 now lets you add keys for VAG MQB49 vehicles with 5C and 5D remotes. This includes popular models from Volkswagen, Audi, and Porsche.
What You’ll Need:
- Yanhua ACDP2/ACDP
- ACDP Module 44with an activated A60A license and solder-free interface boards
What Can It Do?
This setup gives you full control over 5C and 5D keys:
- Add Keys: Program both brand-new original keys or used ones.
- Modify IDs: Change the ID of existing original keys if needed.
Why You’ll Love It:
- No Soldering, No Guesswork: The special interface board lines up perfectly with all the test points. You don’t have to manually find or connect wake points.
- Stay in the Driver’s Seat: Everything is done without taking any parts off the car.
- No Hidden Costs: Pay once for the module—there are no annual fees or per-key charges.
- Simple Process: The dedicated board makes reading and writing data reliable and straightforward.
Which Keys Are Supported?
You can work with a huge range of key styles, including:
- VW 5C Fold-1 & Fold-2
- VW 5D Golf8-1 & Golf8-2
- VW 5C Magotan
- Audi 5D-1 & 5D-2
- Porsche
How to Add a Key in 3 Easy Steps:
The whole process is designed to be quick and straightforward:
ACDP-II software Menu Path:

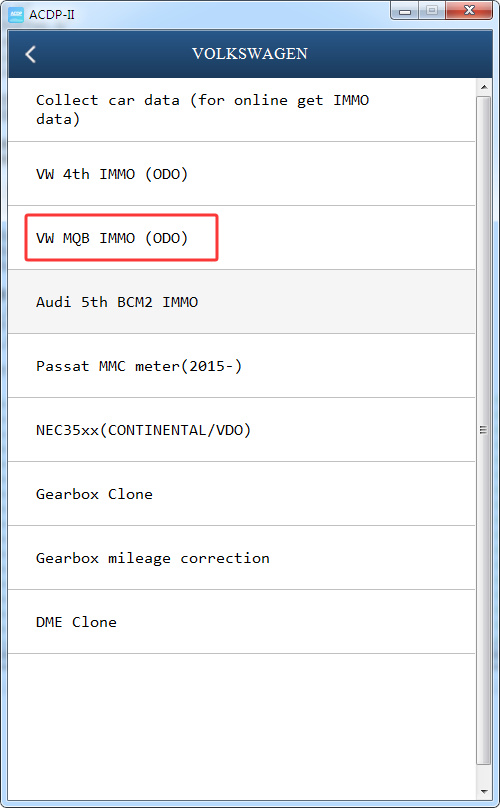

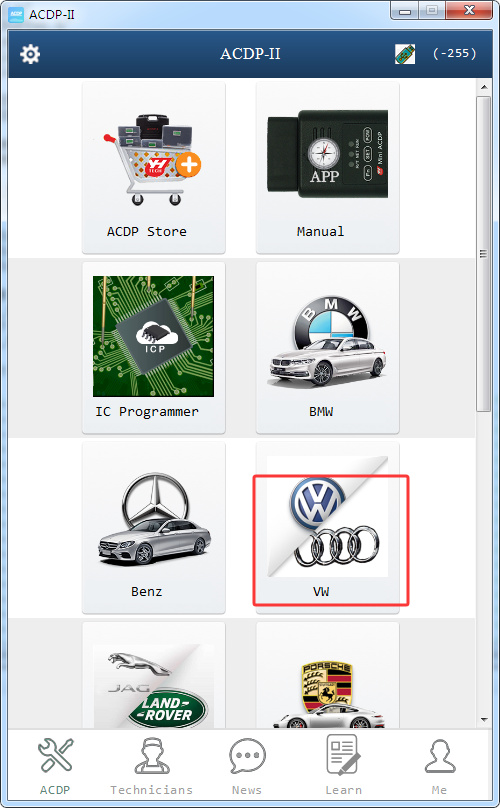

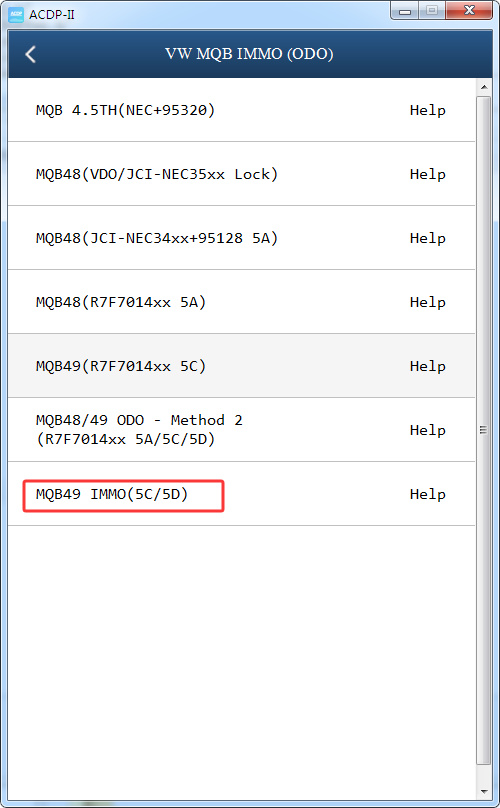

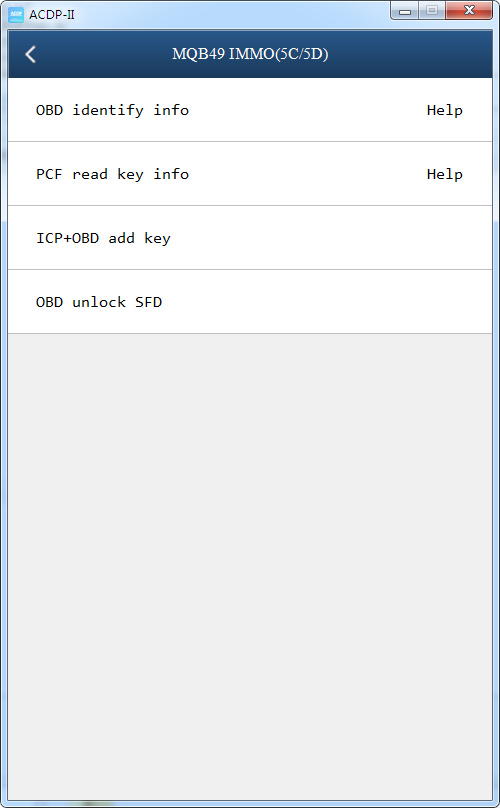

VW-> VW MQB IMMO (ODO)-> MQB49 IMMO (5C/5D)-> ICP+ OBD add key

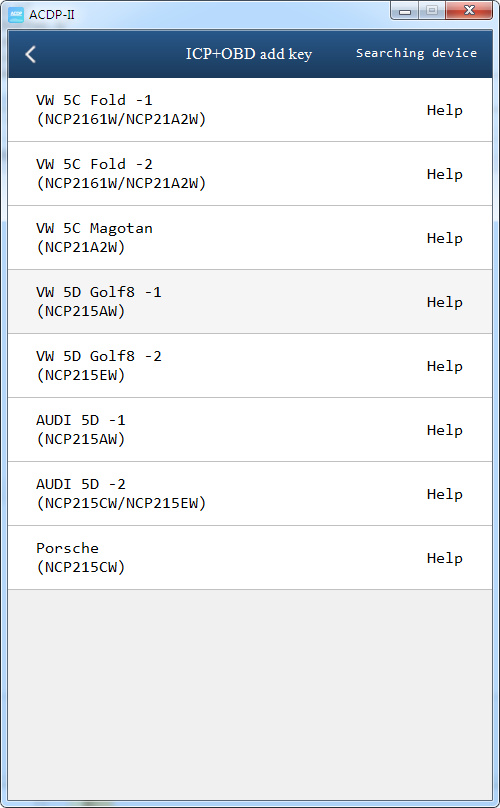

Select the VW model you desire

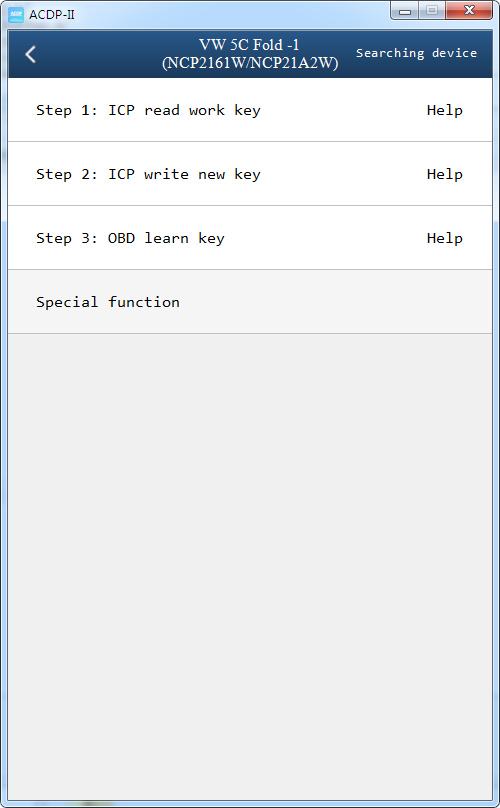

Step 1: ICP Read Work Key
Place a working key on the interface board and perform an ICP read to extract the data.
Step 2: ICP write new key
Put your new key on the board and use the ICP write function to transfer the data.
Step 3: OBD learn key
Head to the vehicle, connect via the OBD port, and use ACDP2 to learn the new key.

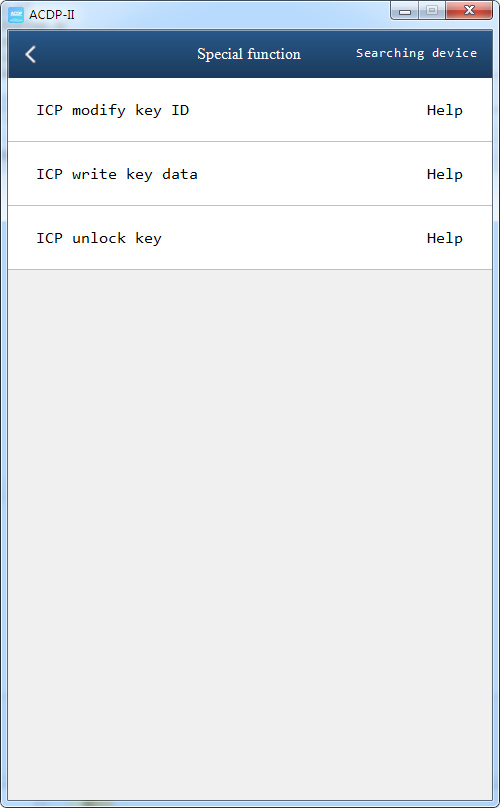

Special function supported:
- ICP modify key ID
- ICP write key data
- ICP unlock key
