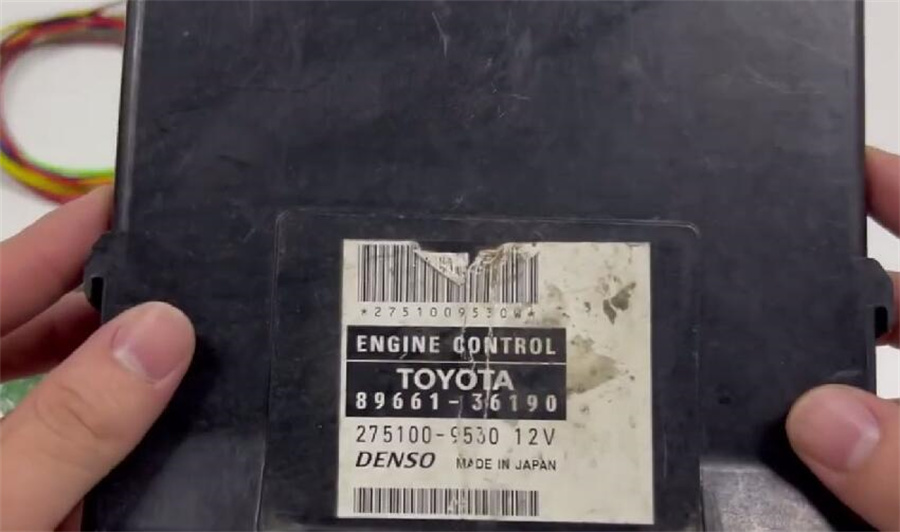

Q: I have a Toyota 89661-36190 ECU with DENSO 275036-xxx 76F0039GD, can I use CG FC200 to read it in boot mode?

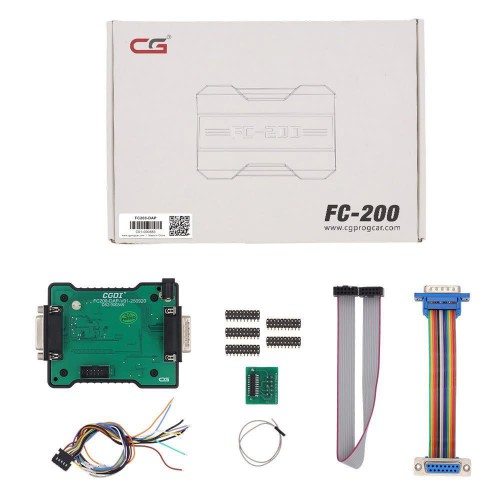

A: Yes, make sure your FC200 software is updated to version 1.3.3.0, and purchase an extra new FC200 DAP Adapter to work with your FC200.
CG FC200 V1.3.3.0 Major Upgrade:
Added BOOT mode ECUs (DAP adapter required)
Hyundai / Kia / Isuzu / Leyland: DCM7.1AP
JCB / BAIC: DCM7.24
Tata / Mahindra / JAC / Great Wall / Dongfeng: DCM7.1AP, DCM7.24
Toyota / Lexus:
DENSO 275036-xxx 76F0038AGD
DENSO 275136-xxx 76F0038AGD
DENSO 275036-xxx 76F0039GD
DENSO 175822-xxx 76F0038GD
DENSO 175822-xxx 76F0039AGD
DENSO 175822-xxx 76F0039GD
DENSO 175822-xxx 76F0040GD
DENSO 275036-xxx 76F0040GD
DENSO 275036-xxx 76F0070
DENSO 275036-xxx 76F0085
DENSO 275136-xxx 76F0085
DENSO 275036-xxx 76F0040AGD
DENSO 275922-xxx 76F0070
DENSO 275992-xxx 76F0070
- Added PCR2.1 immobilizer data parsing, and SIMOS 8.6 cloning and immobilizer data parsing functions.
- Added Hyundai/Kia BOOT mode ECUs:
SIMK41, SIMK42, SIMK43_AT, SIMK43_MT, SIMK62.
- Added “The three monitors not ready” fix for MED17.5.21.
- Added VIN modification and “The three monitors not ready” fix for MG7.9.8.
How to read Toyota ECU by CG FC200 with DAP Adapter via Boot?
1. Hardware Setup:

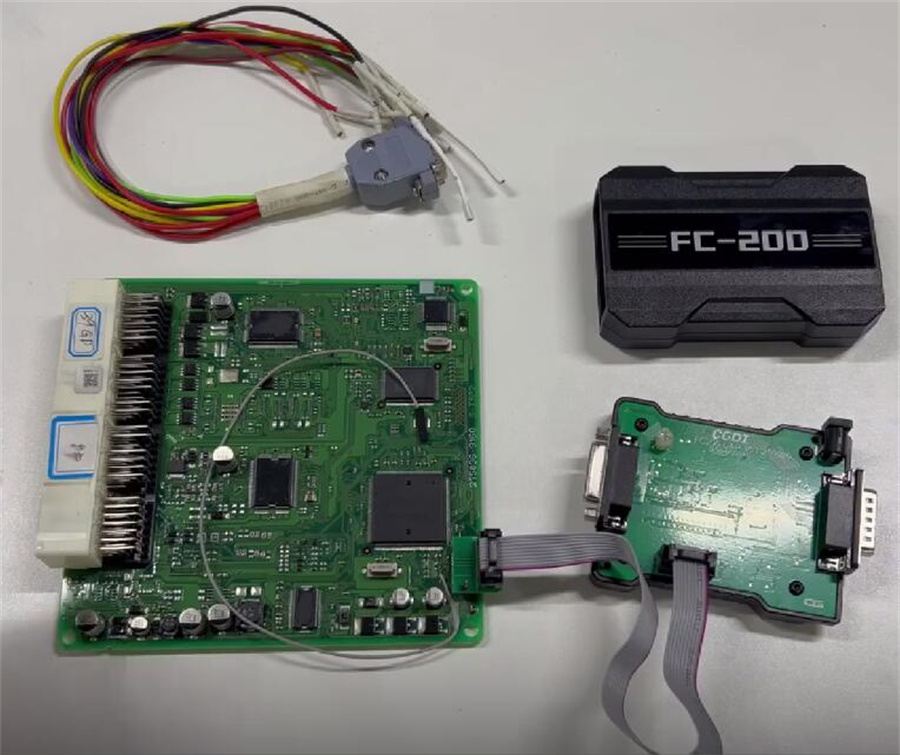

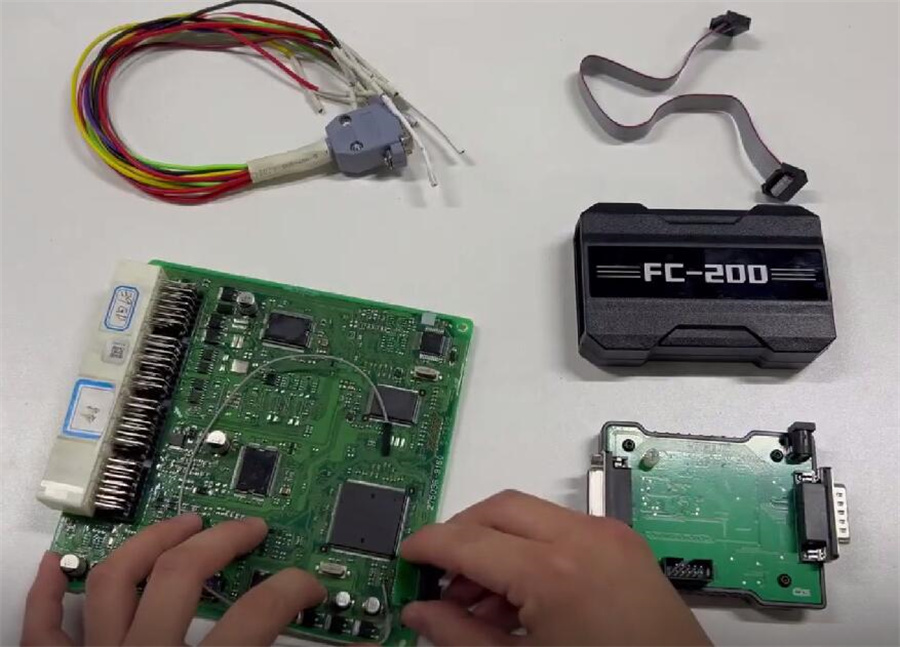

Prepare CG FC200, Vehicle-grade wiring harness, FC200 DAP Adapter, Gray ribbon cable connector and Toyota DENSO ECU as follows

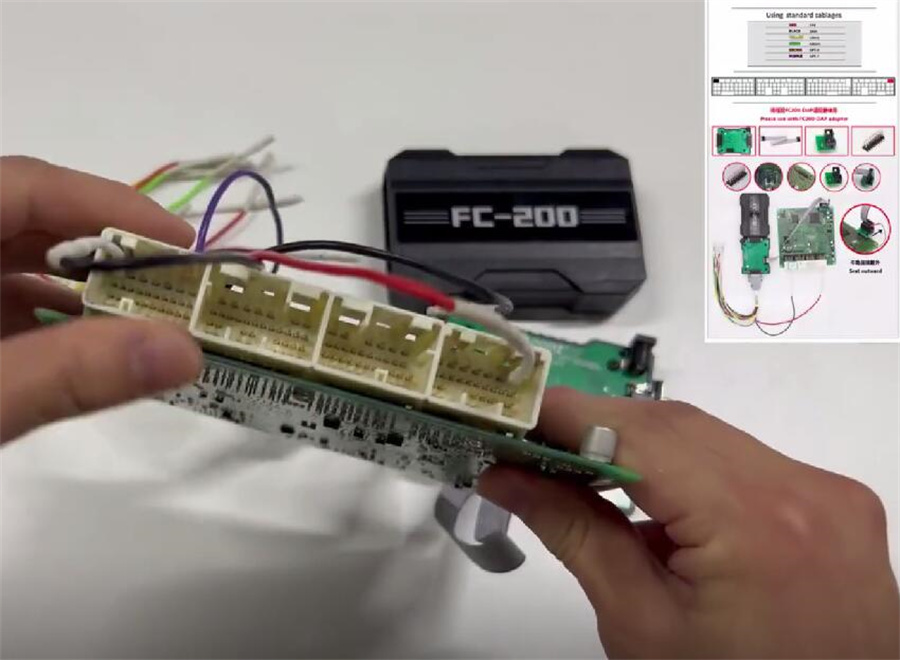

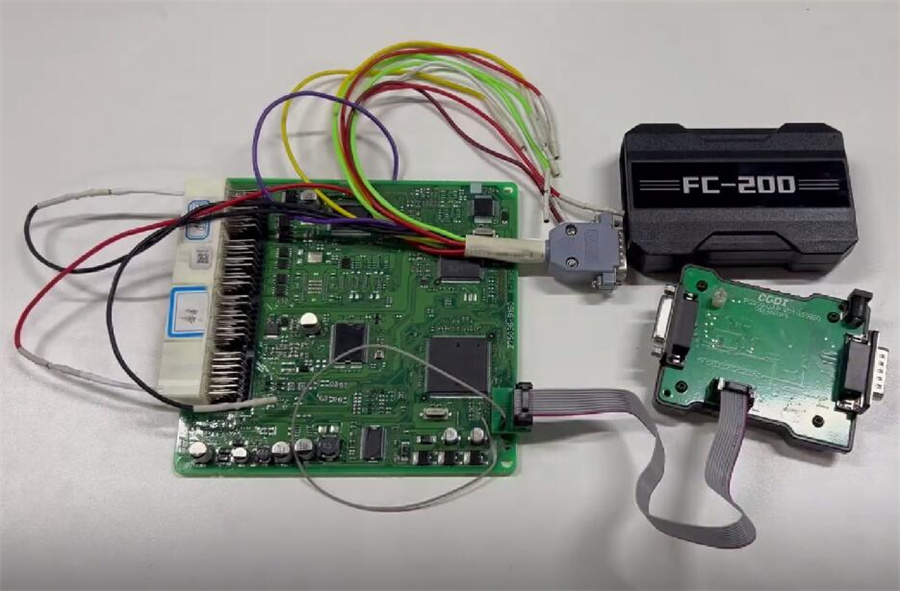

Wire the pins according to diagram
Connect CG FC200 ECU Programmer to your computer via USB and power it on

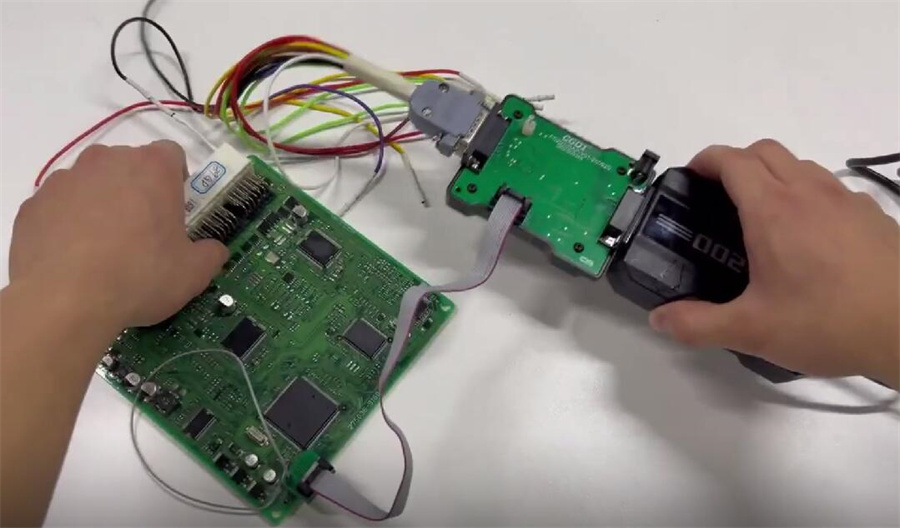

Finally, link DAP Adapter between FC200 and Toyota ECU
2. Read ECU Flash:
Run FC200 software

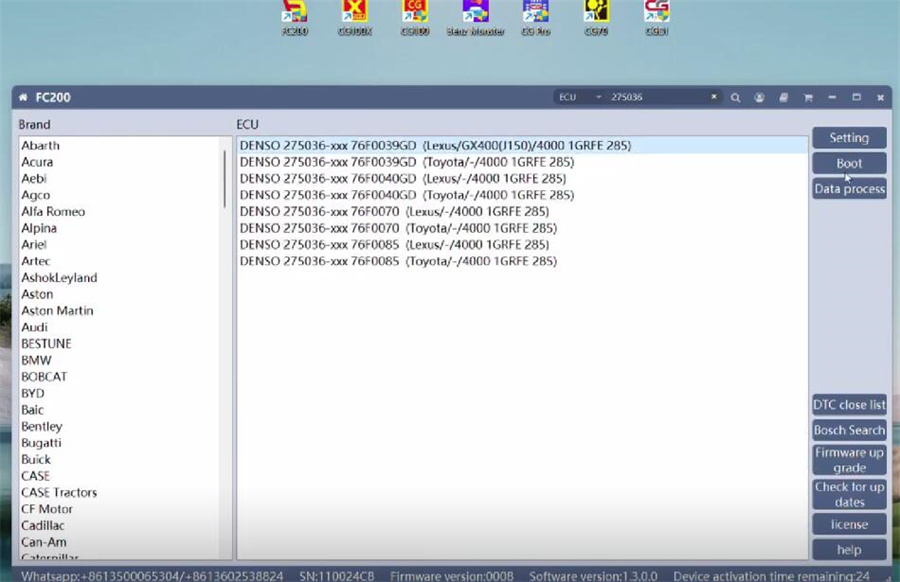

Enter the target ECU model (e.g., 275036) and select the exact match from the dropdown menu
Choose “Boot” mode
Click “Connect,” and then select “Read Flash”
3. Save Data:

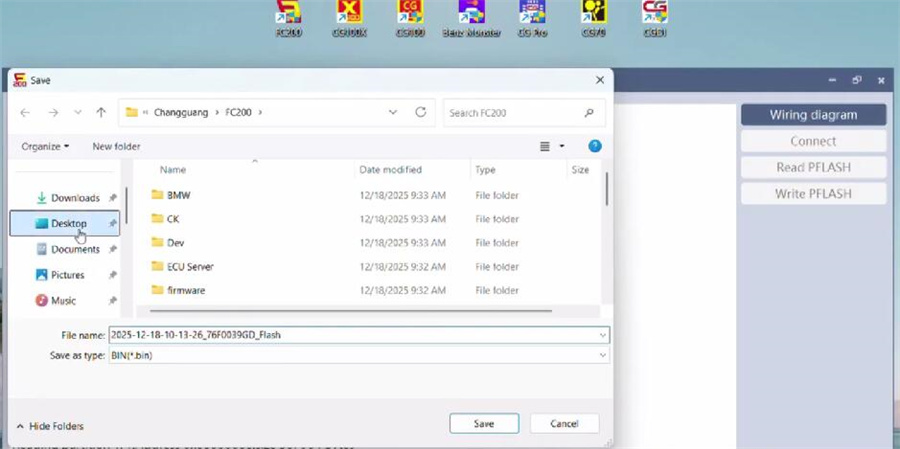

Save the extracted flash file
Process complete
