How to Use OBDSTAR MQB RH850/V850 Adapter?

OBDSTAR MQB RH850/V850 Adapter will work with OBDSTAR G3 for extracting immo data. The new adapter will do VAG MQB48, Ford 2021-, Nissan/ Renault, and FCA models.

Here we are going to show you how to use this adapter.

Cluster:

Skoda 2017 D70F3525



Tools:

OBDSTAR X300 Classic G3

OBDSTAR MQB Adapter Set



Step-by-step Guidance:

Turn on OBDSTAR G3,

Select

IMMO>>VW>>V45.47>>Manual select system>>Skoda>>MQB METTER

In vehicle, the tool will automatically recognize the cluster, MQB48-5A or MQB49-5C.

Select

All Key Lost>>Read IMMO Module Data>>Read Dashboard IMMO Data>>D70F3525-V1(A2C81589600)

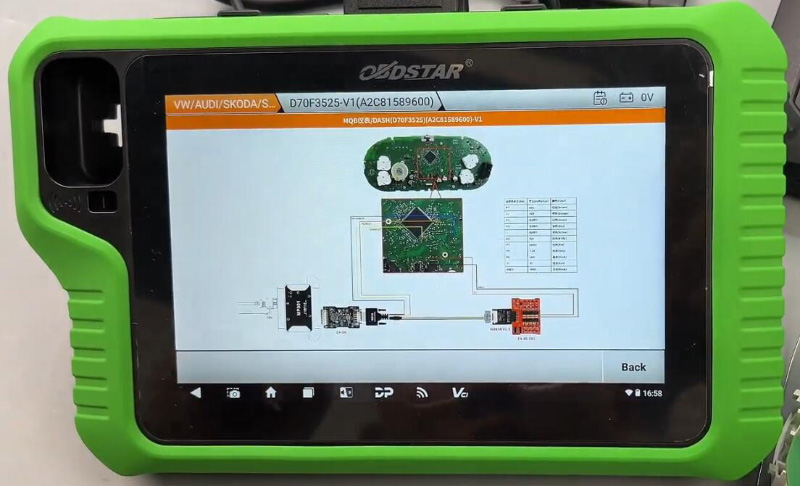

Check out PINOUT.

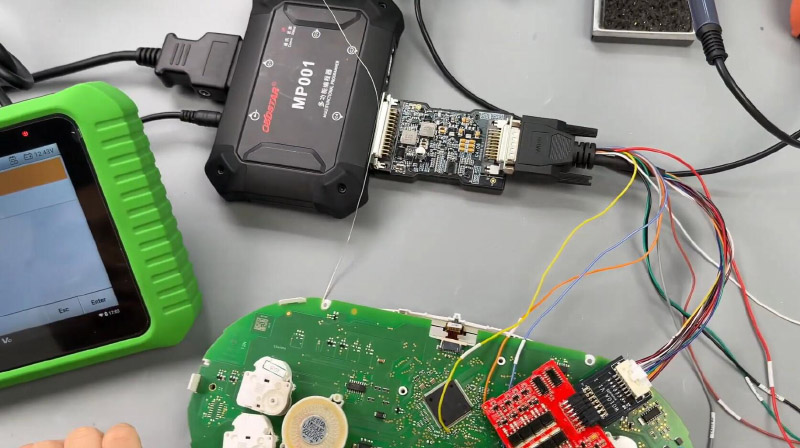

Connect OBDSTAR G3 to cluster using MQB Adapter Set.

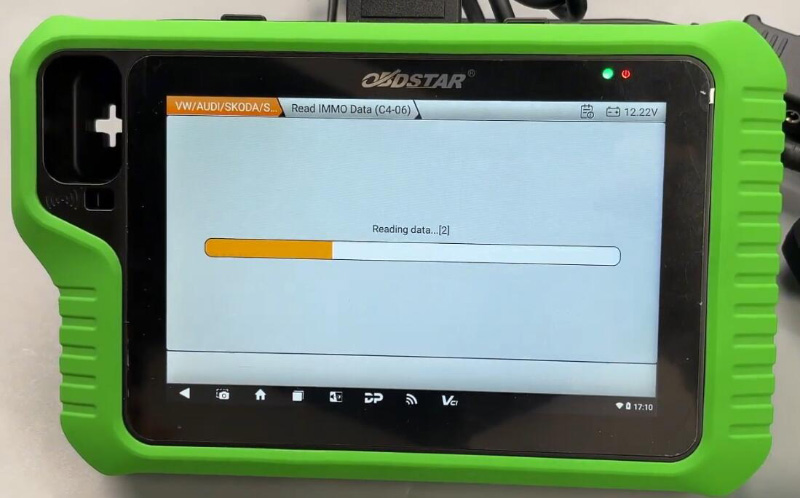

Select ‘Read IMMO Data (C4-06)’.

Read Dflash and Pflash data.

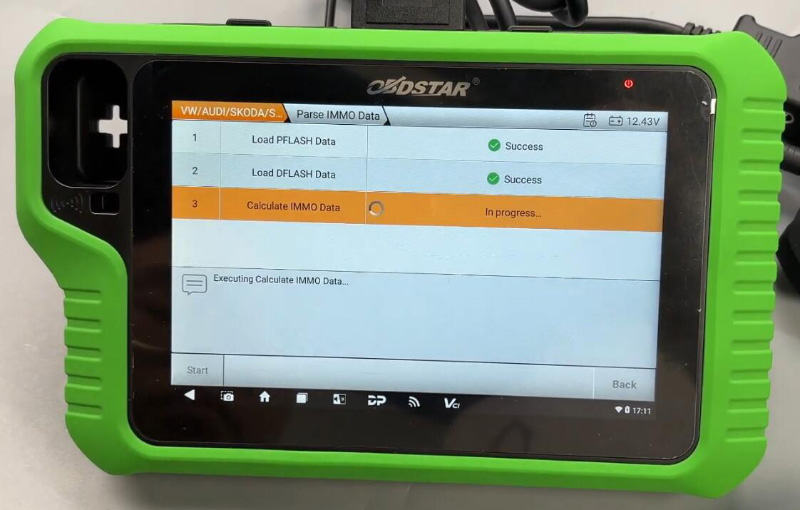

Select ‘Parse IMMO Data’.

Load Dflash and Pflash data.

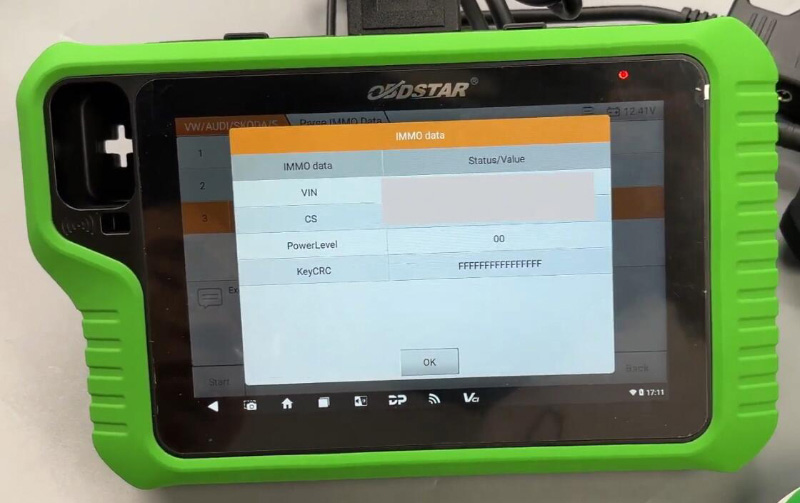

Get IMMO data file.

Then we can program new keys using OBDSTAR G3 or other key programmers.

Done! That’s how to use OBDSTAR MQB RH850 Adapter Set.
