Program latest VW/Audi 5D immobilizers reliably with KEYDIY KD-X4 and FGB-series PCBs. Full guide for FGB08 (Audi Waterdrop) & FGB25 (VW Golf 8) smart keys.This version includes key search terms (VW/Audi 5D, KEYDIY KD-X4, FGB08, FGB25, immobilizer programming) while staying concise and clickable.
Hardware Essentials
- KEYDIY KD X4 Key Programmer: The core 5-in-1 programming device.

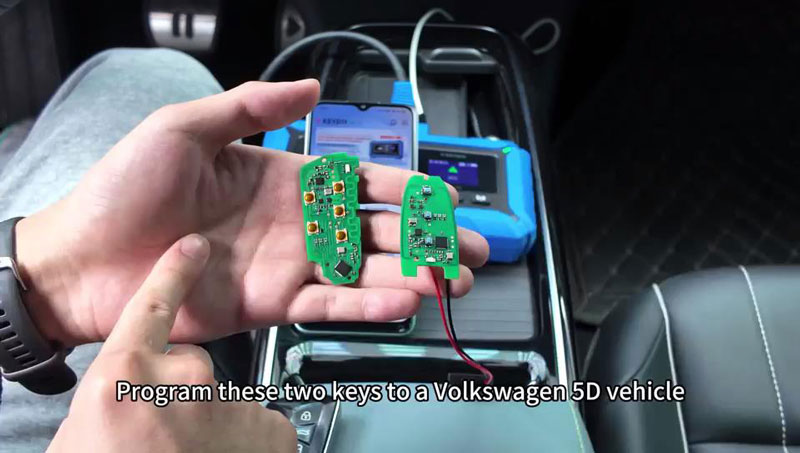

- KEYDIY FGB08/FGB25 PCB: Specialized keys supporting VW 5D and compatible Audi models.
- Original Vehicle Key: Required for data reading and service code generation.
Note on FGB Keys: Out of the box, only the last button on a new FGB key will emit a frequency. All buttons activate automatically once programming is complete.
Step-by-Step Programming Guide
1. Vehicle Data Acquisition

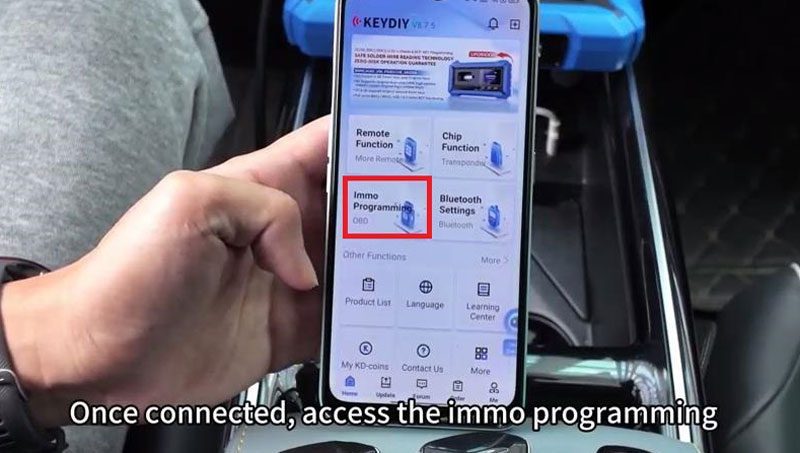

Connect your KD-X4 Key Programmer to the vehicle and access the IMMO menu:
(1)Navigate to: Immo programming > Volkswagen > 5C/5D immobilizer system.

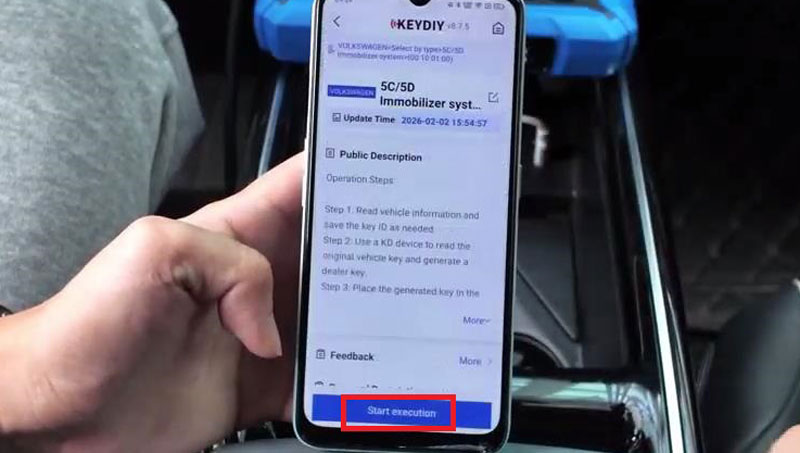

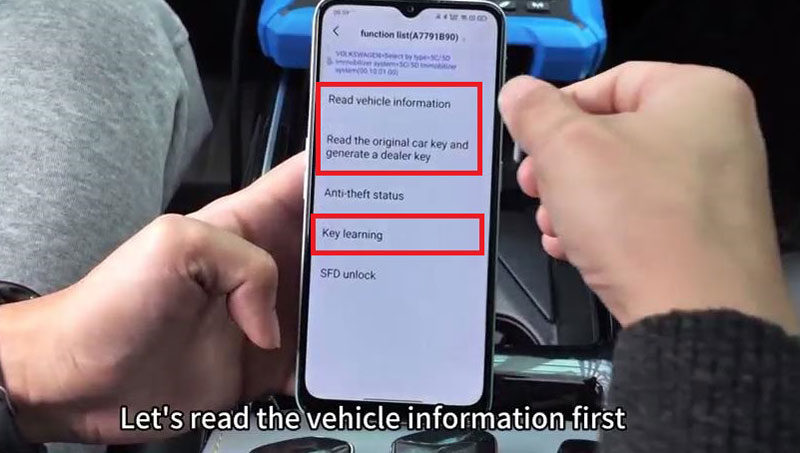

(2)Select Start execution > Read vehicle information.

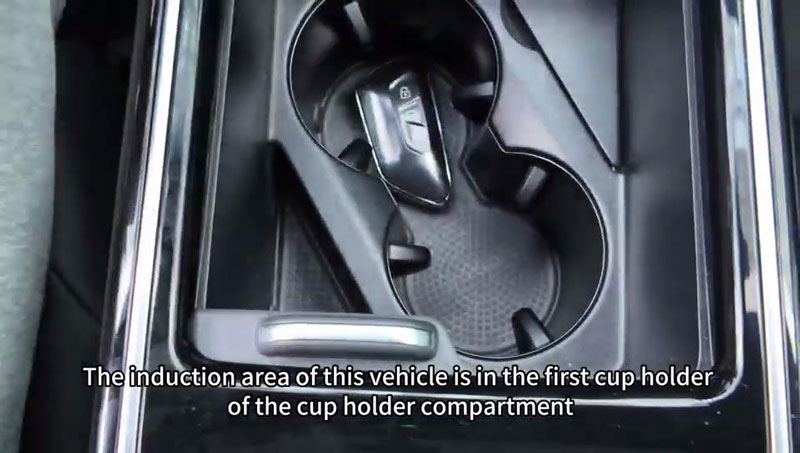

(3)Place the original key in the vehicle’s ignition area (e.g., the cup holder) and turn on the ignition.

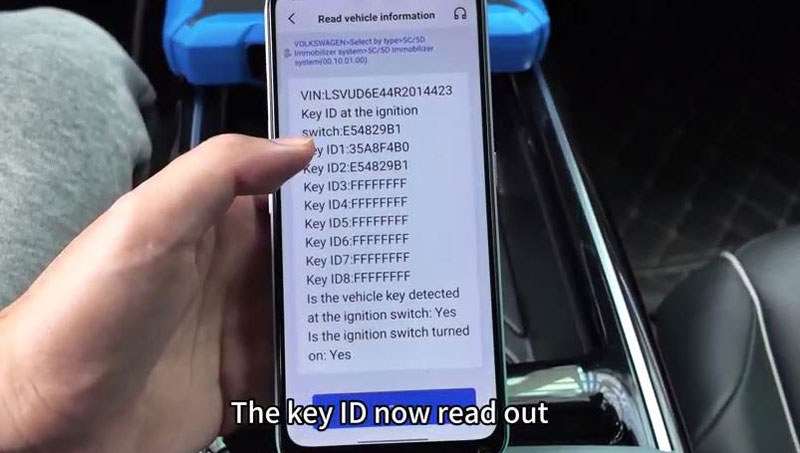

(4)Record the Key IDs and ensure you have the KD Service Code generated from the original key data.
2. Generate the Dealer Key
Prepare the new KEYDIY FGB remote to be recognized by the vehicle:

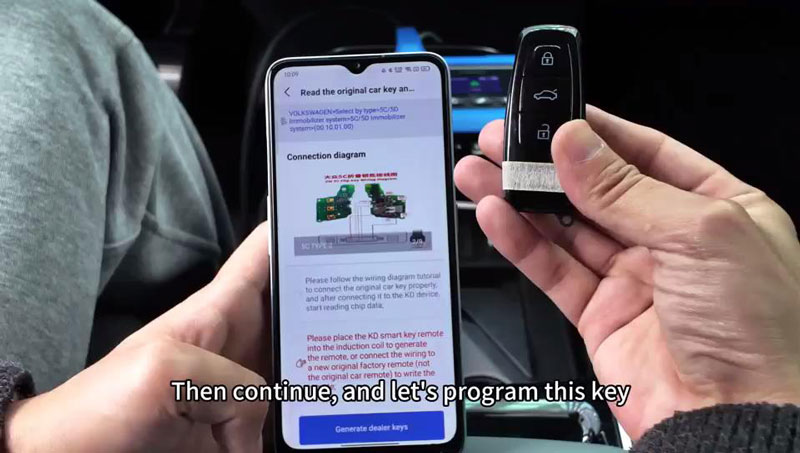

(1)Select Read original car key and generate a dealer key.
(2)Place the new FGB key on the KD-X4 induction area.

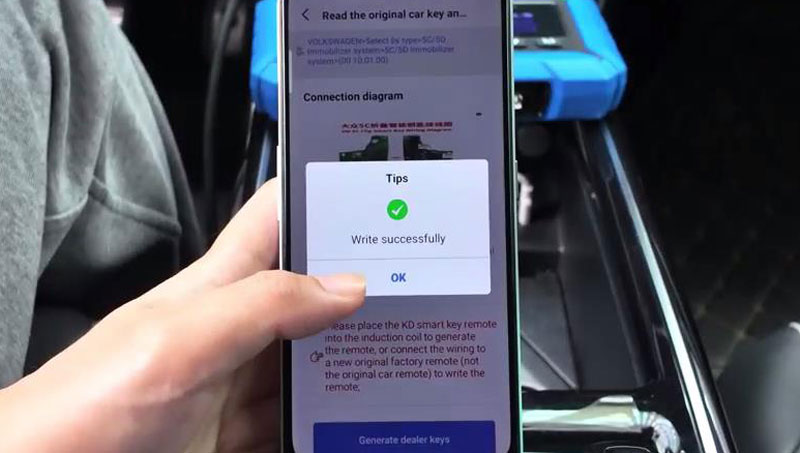

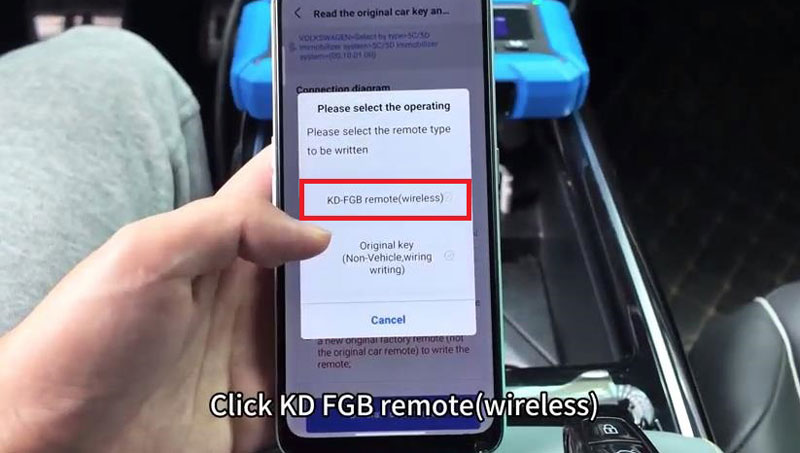

(3)Select KD-FGB remote (wireless) and the correct frequency (433.46/434.36MHz) to write the data.
3. Key ID Synchronization (Cloning)
To ensure perfect compatibility, write the original key’s ID to the new remote:

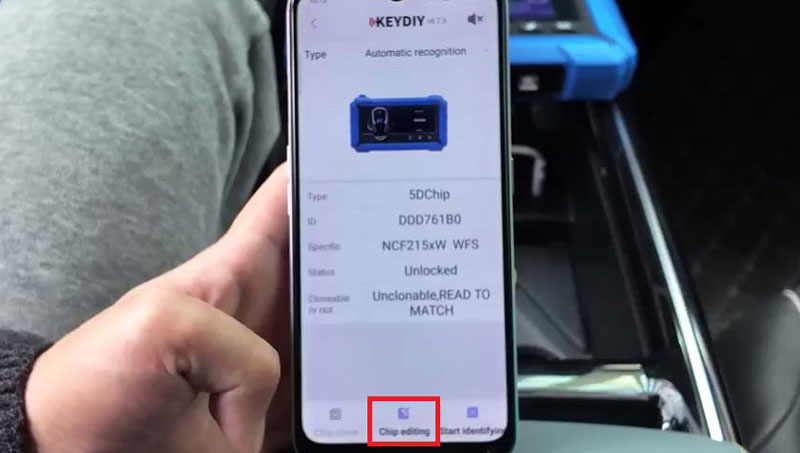

(1)Go to Chip Function > Automation detection clone > Chip editing.
(2)Enter the original vehicle ID (e.g., 35A8F4B0) and click Write.
4. Final Key Learning
Complete the process by syncing all keys to the immobilizer:

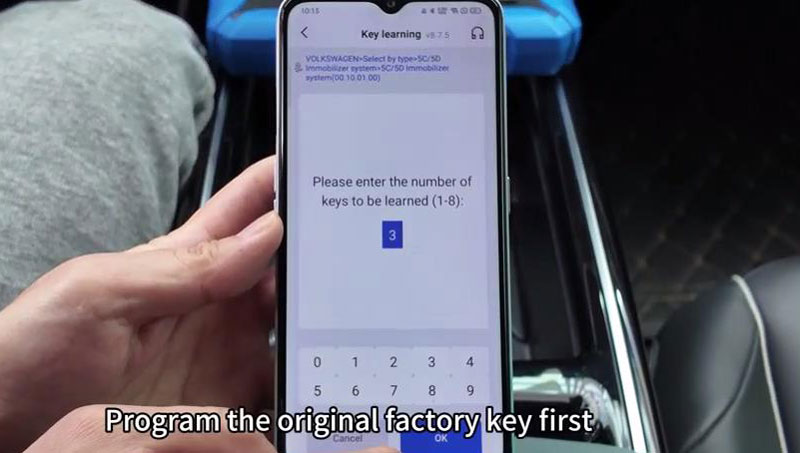

(1)Return to 5C/5D immobilizer system > Key learning.
(2)Enter the total number of keys to be learned and confirm they are smart keys.
(3)Follow the prompts to place each key (original and new) on the vehicle’s induction coil one by one.

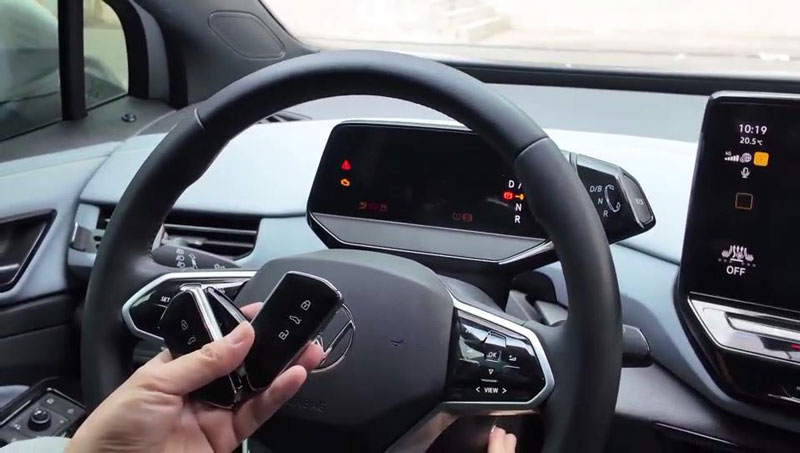

(4)Once “Matching successful” appears, cycle the ignition to finalize the sync.
