This article walks you through how to safely disassemble the Audi A3 MQB49 5D smart key and explains the internal components in detail.
Whether you are handling an all-keys-lost case, duplicating a key, or performing diagnostics, understanding the internal structure helps prevent unnecessary damage. Keep in mind: these smart keys are delicate — improper handling can permanently disable them.
Disassembly Steps
Before starting, prepare a static-free workspace and use proper tools such as plastic pry tools, precision screwdrivers, and a multimeter.
1. Open the Key Shell

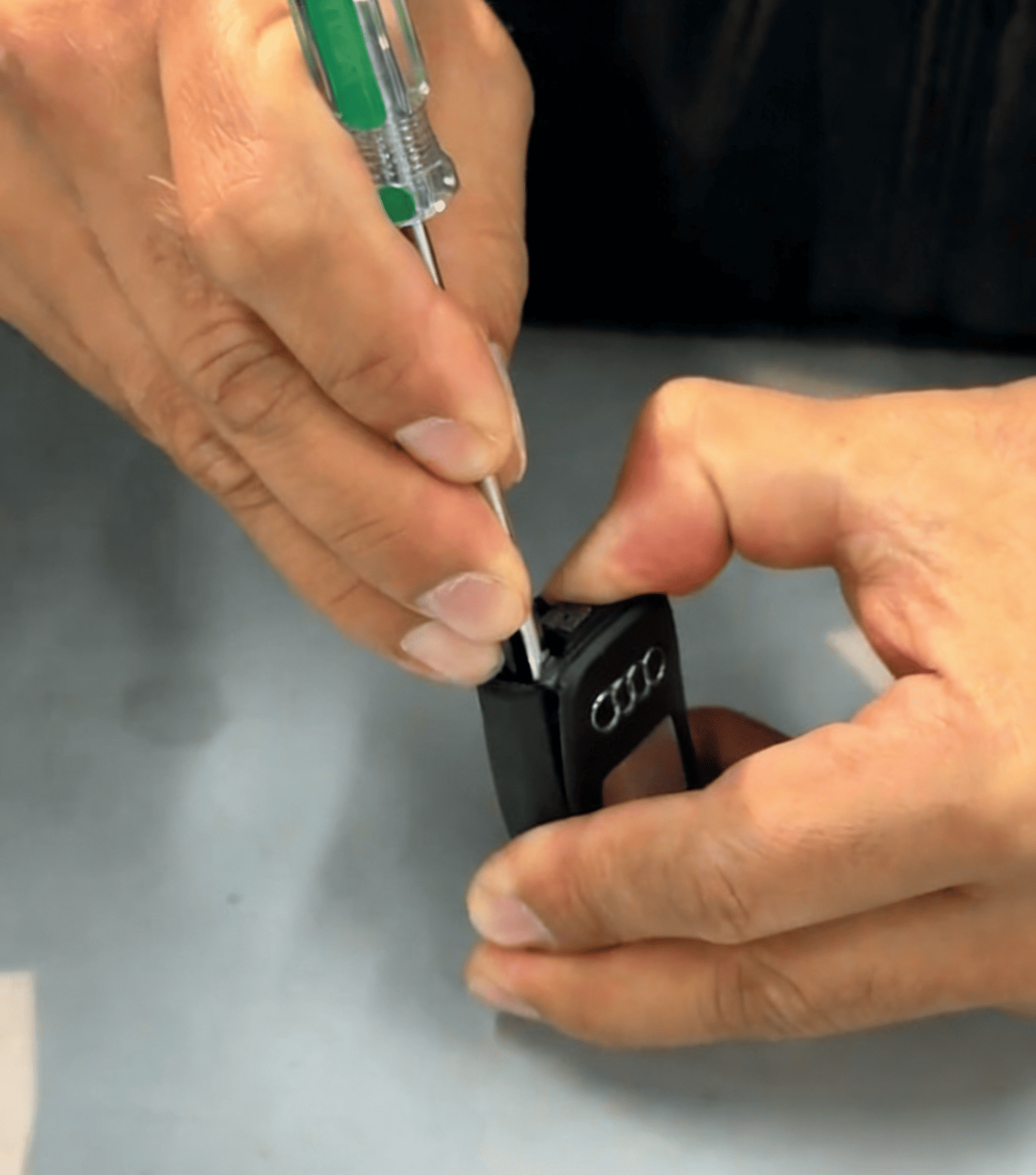

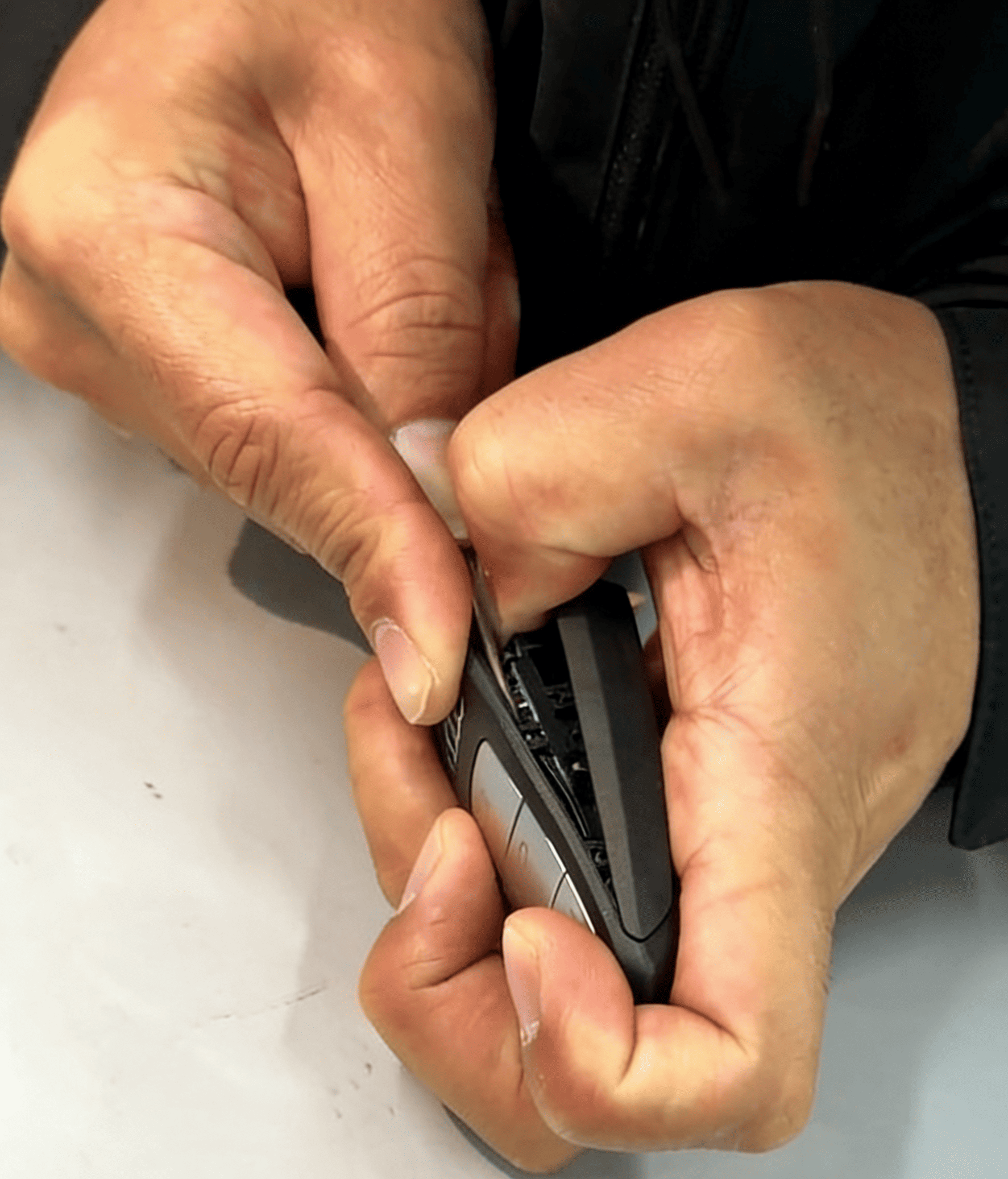

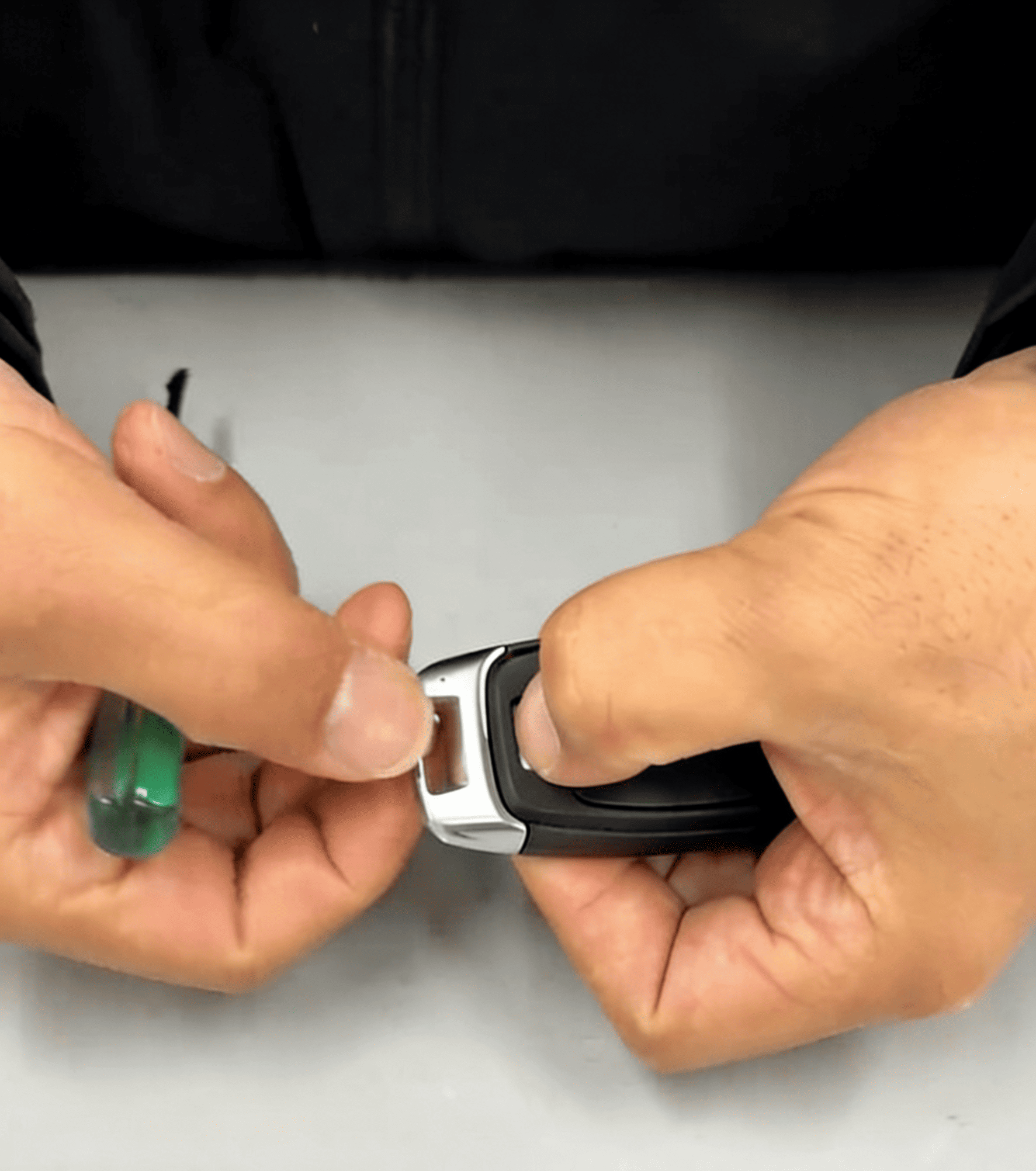

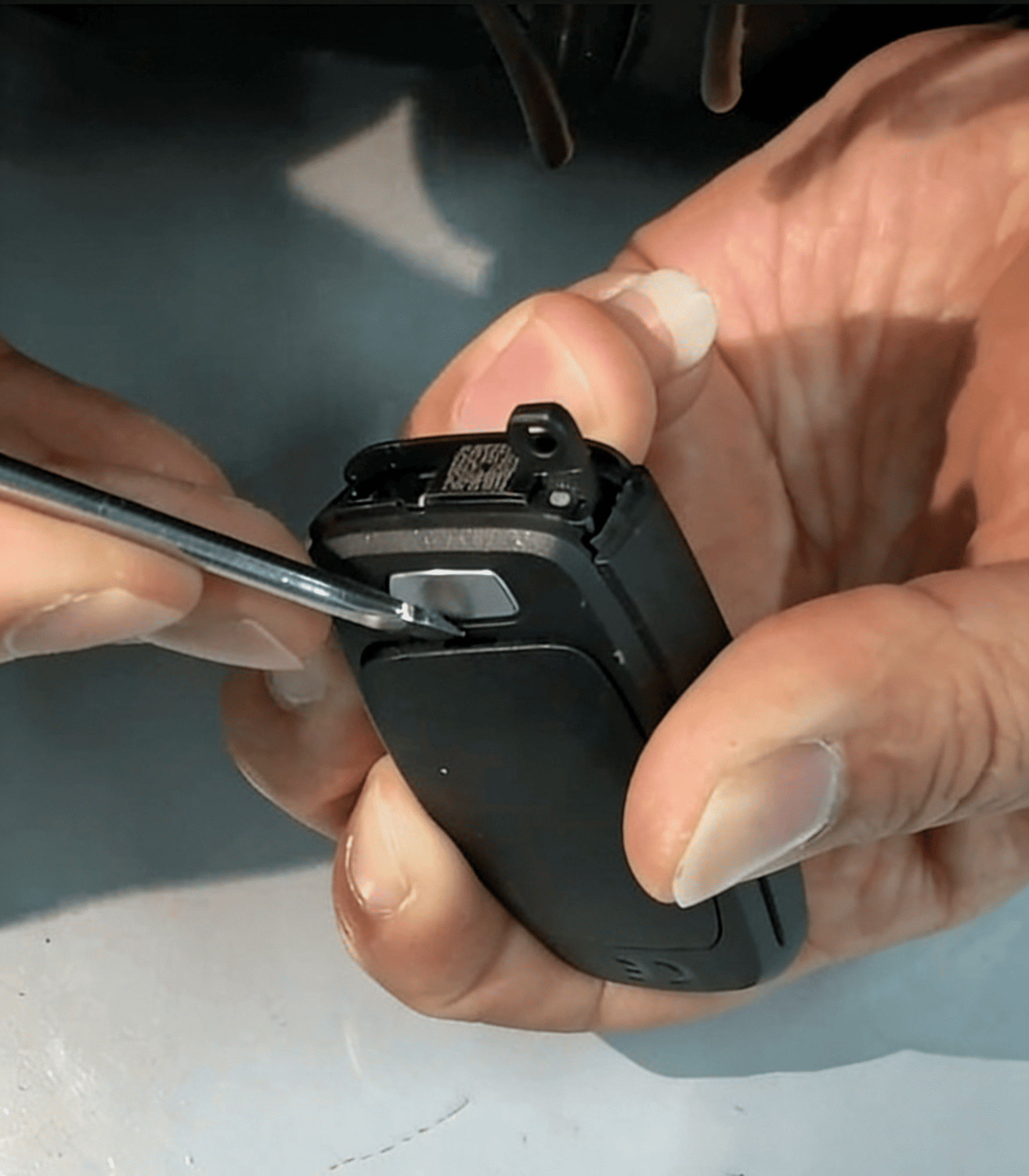

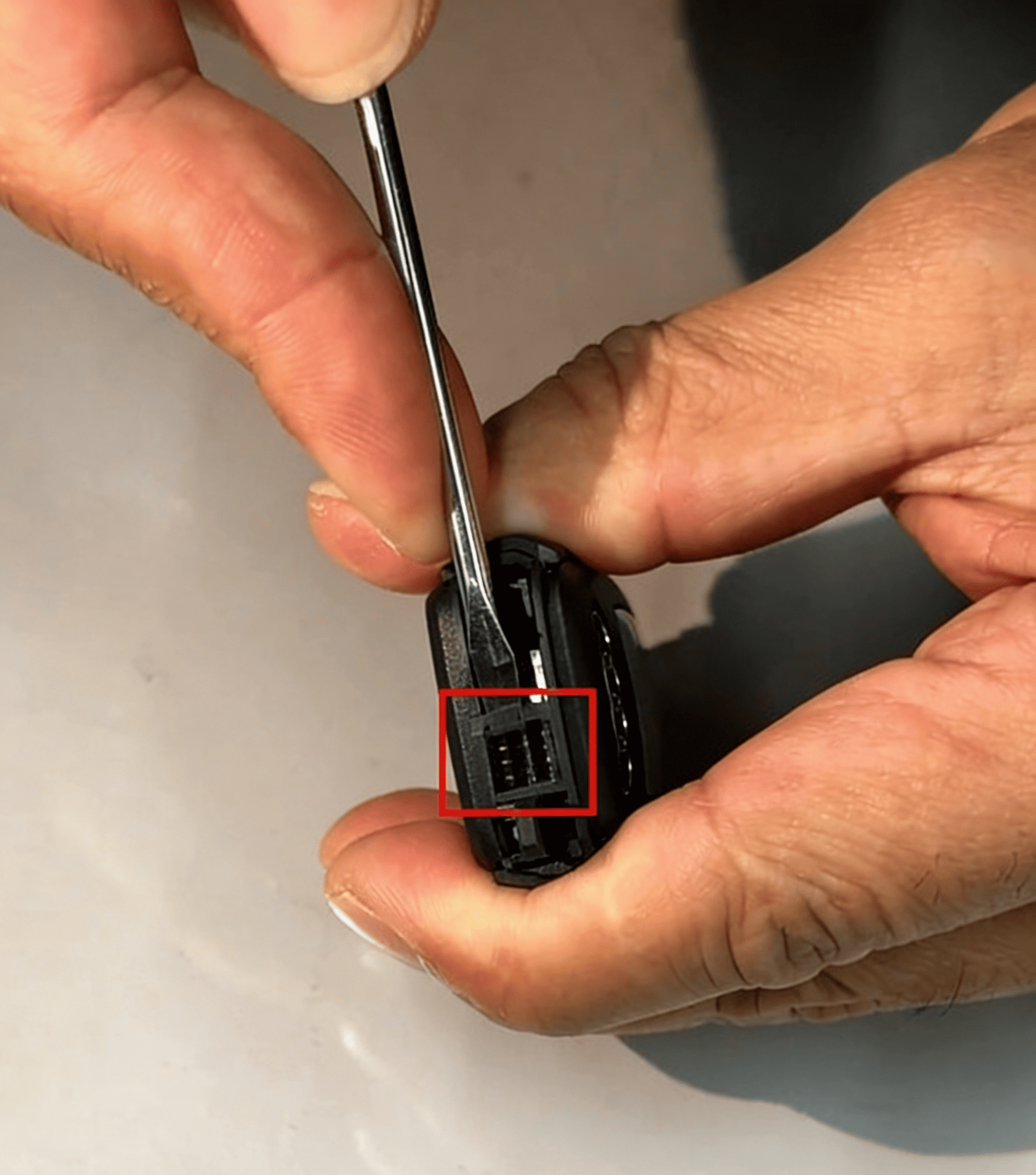

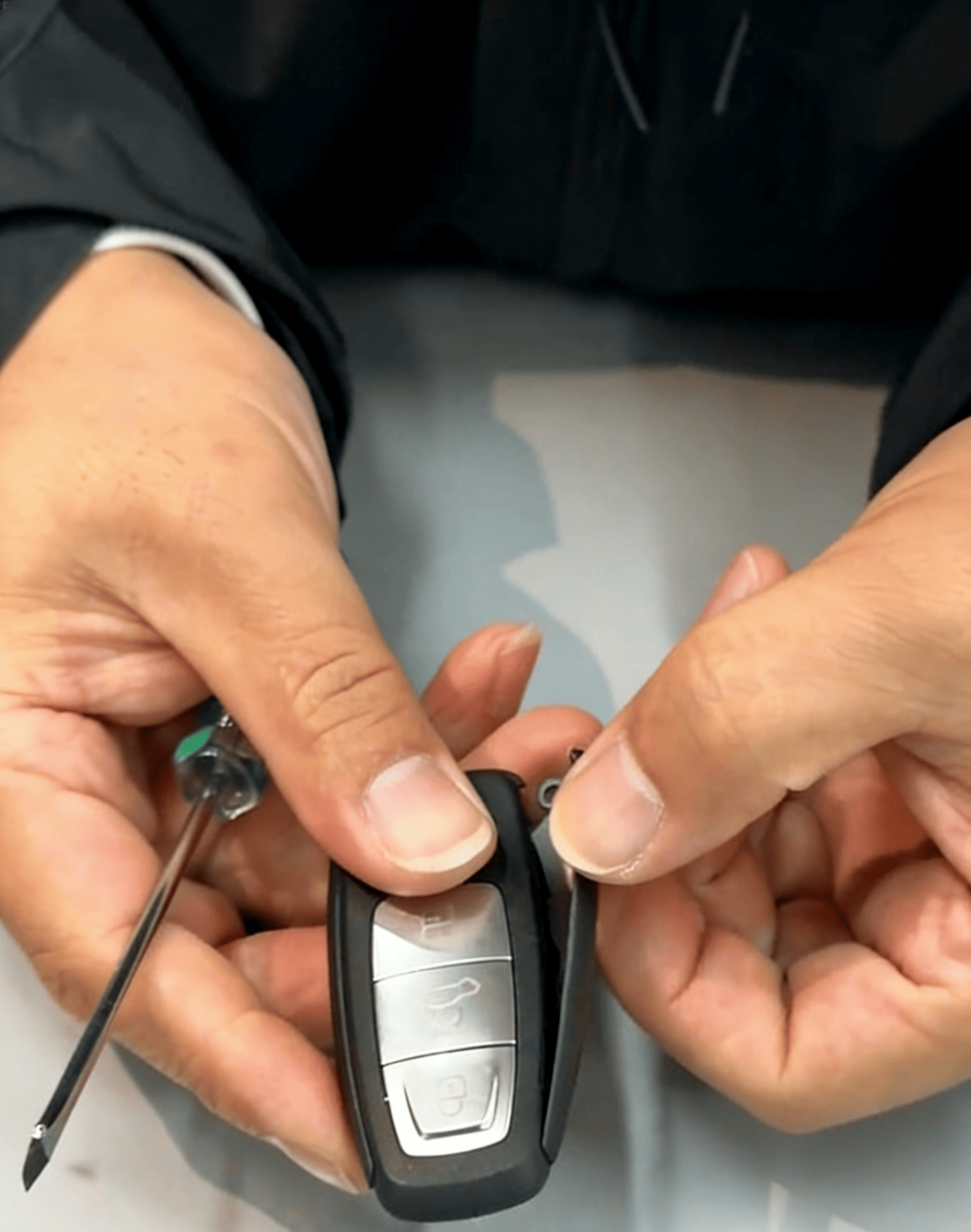

Find the seam along the side of the key fob. Insert a plastic pry tool gently and twist to separate the housing.
Avoid using metal tools to prevent scratching the casing or short-circuiting components.
2. Remove the Battery

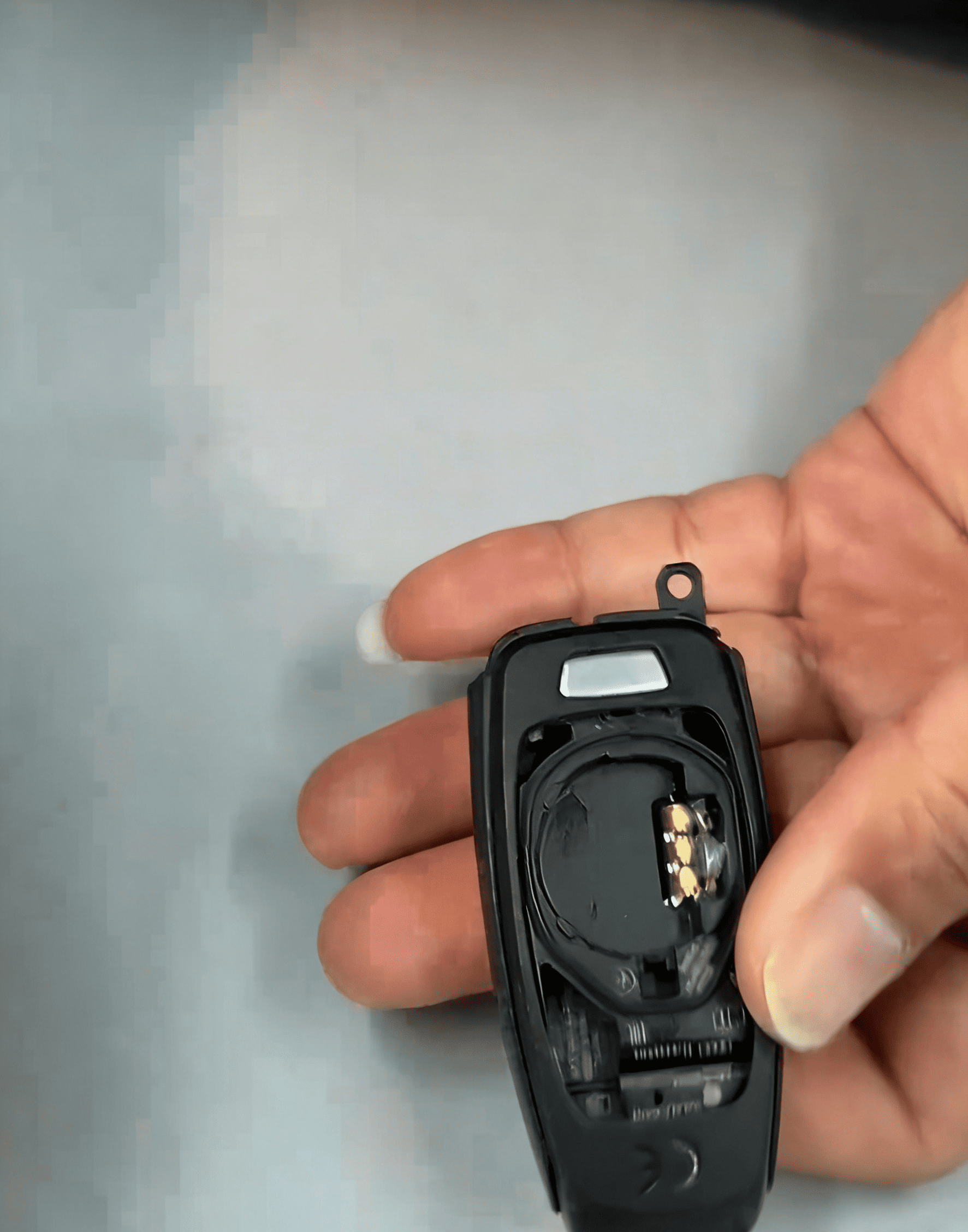

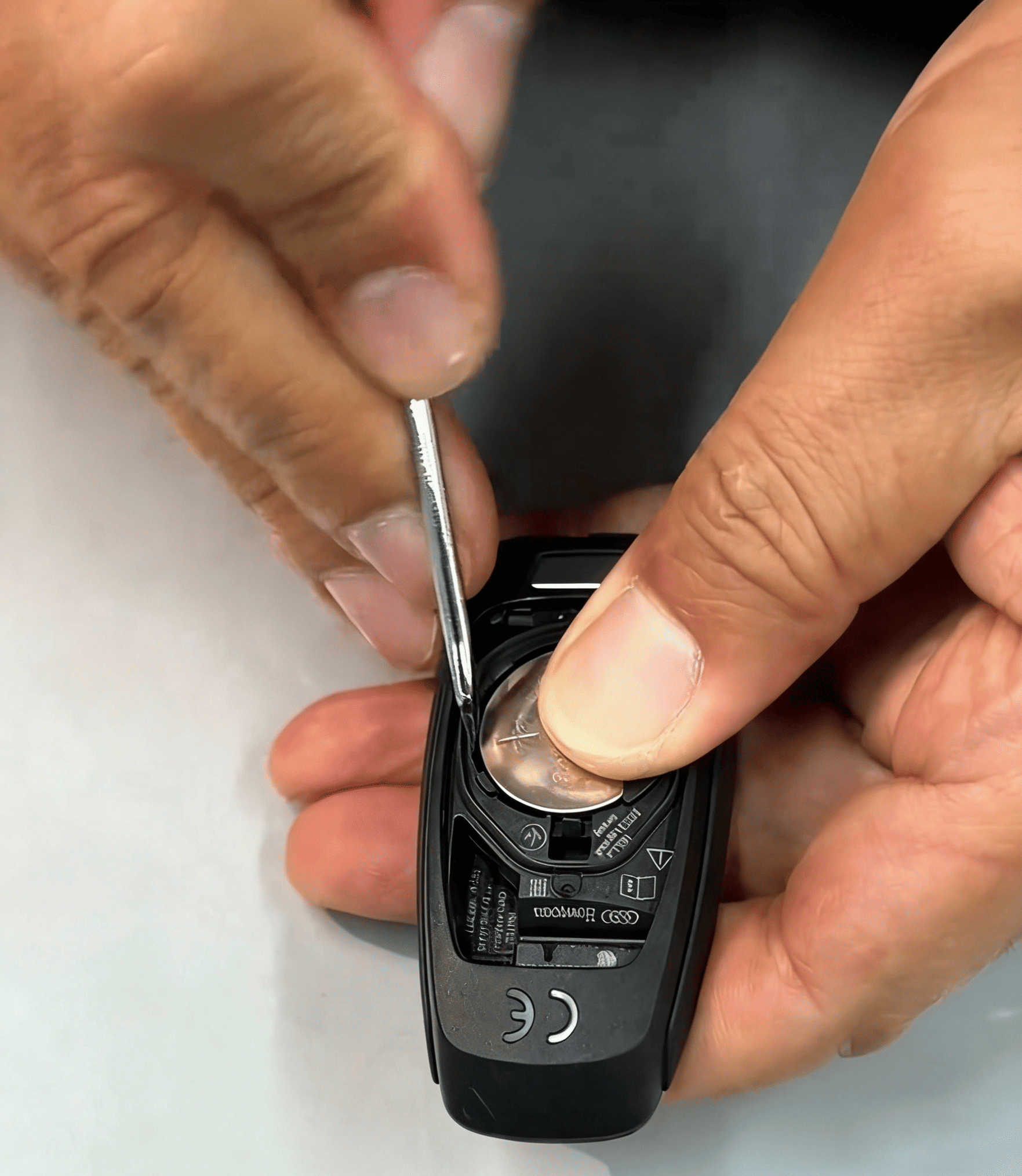

Take out the CR2032 battery carefully.
Check the voltage — it should read approximately 3V.
Low battery voltage can lead to programming or synchronization issues.
3. Remove the PCB

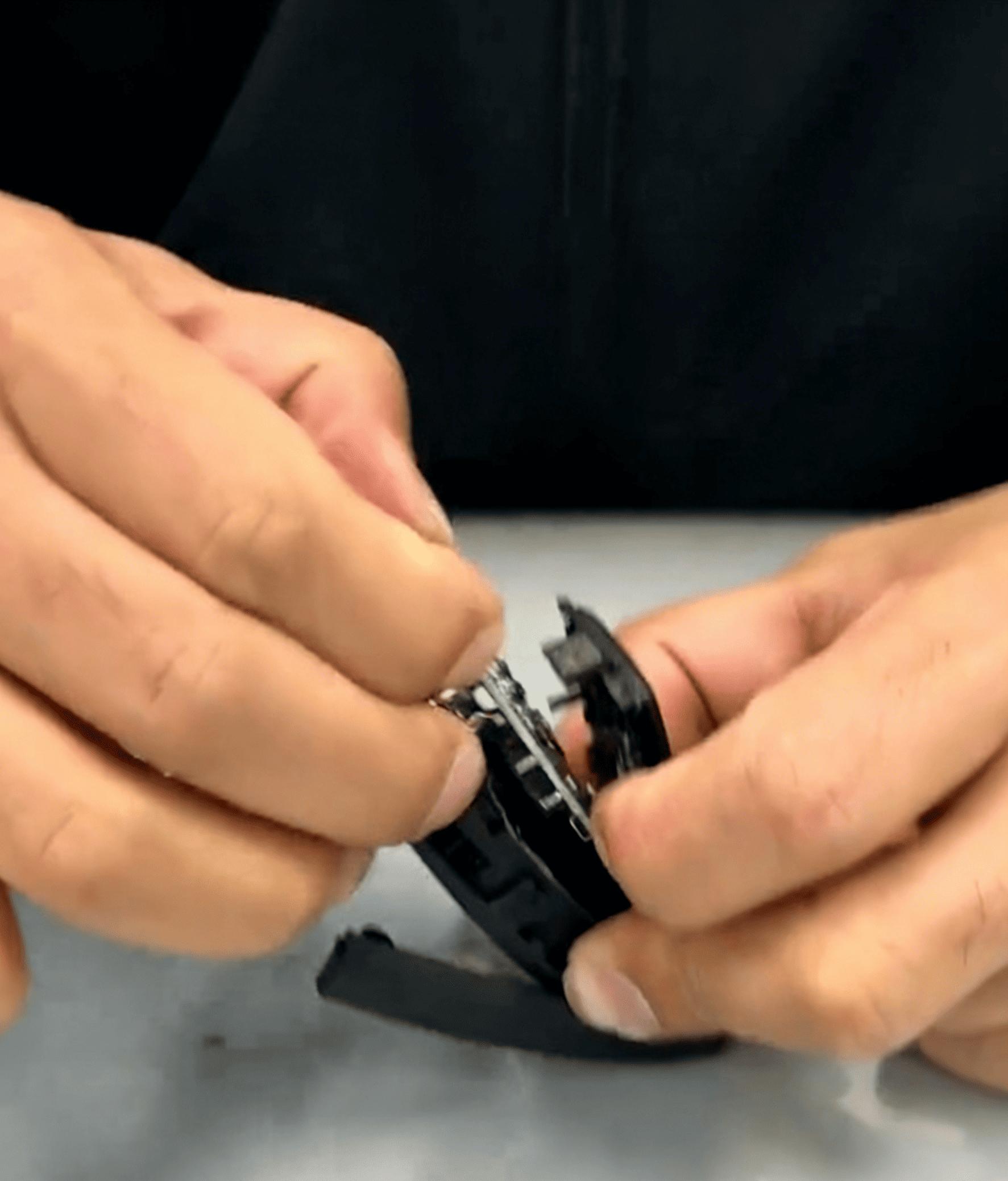

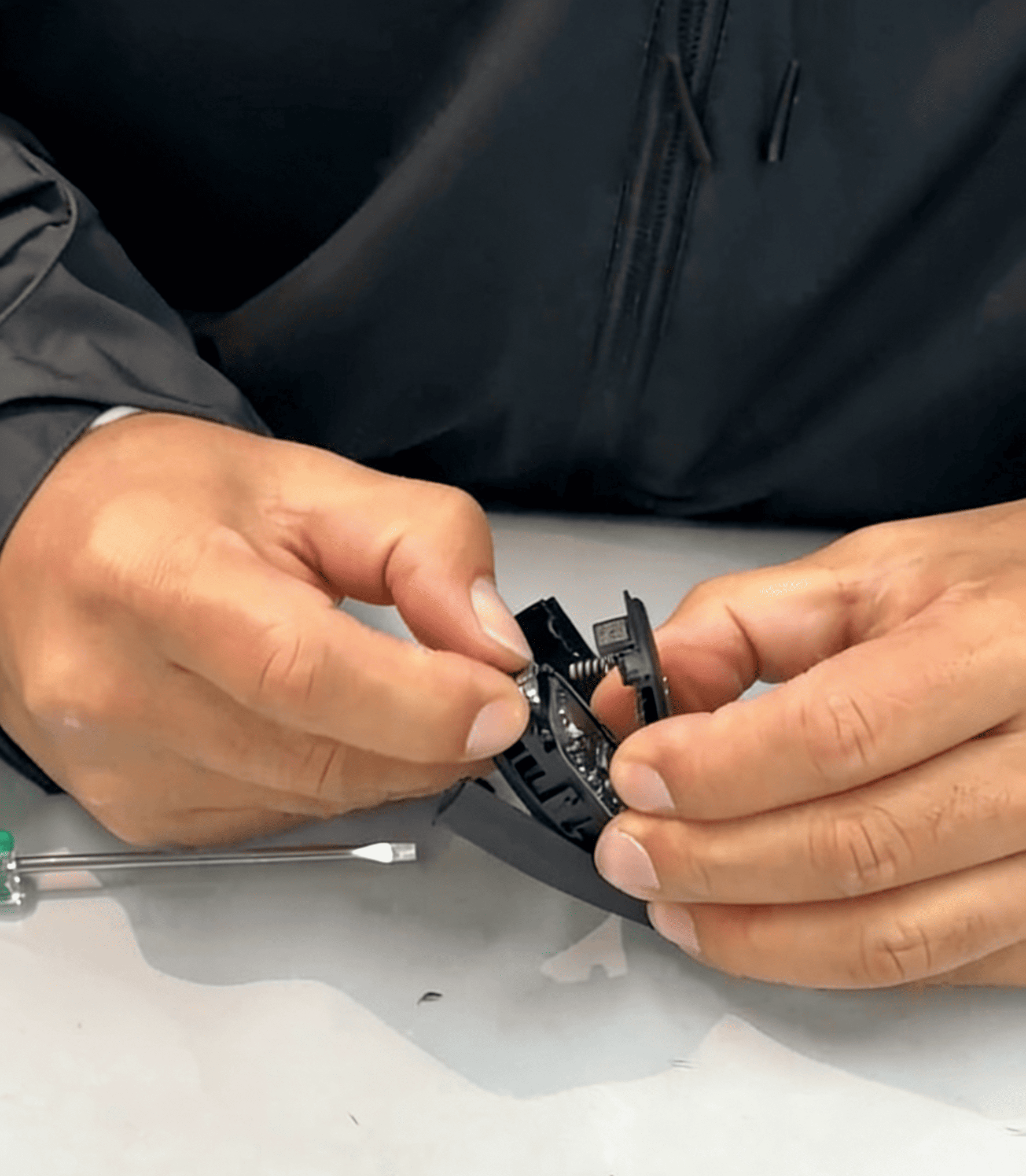

Carefully lift the circuit board from the housing.
Pay close attention to the antenna coil and button contact points, as these parts are fragile.
4. Inspect the Internal Components
After opening the key, you will see several critical parts including:
- 5D immobilizer chip
- MCU (microcontroller)
- EEPROM memory chip
- Crystal oscillator
- Antenna coil
- Copper wiring traces
Internal Components Overview
The internal design of the smart key is compact and highly integrated. Below is a breakdown of each major component:
5D Chip
The core immobilizer transponder. It communicates securely with the vehicle ECU and is encrypted for anti-theft protection.
MCU (Microcontroller Unit)
Handles remote button inputs, signal processing, and communication logic. Commonly manufactured by NXP or Infineon.
EEPROM
Stores key identification data and pairing information. Any read/write operation must be handled carefully to avoid data corruption.
Crystal Oscillator
Provides stable frequency timing for RF communication (typically 433MHz or 868MHz in European markets).
Antenna Coil
Supports proximity detection and keyless entry functions.
Wiring Traces
Thin copper lines connecting all components. Soldering modifications require precision — incorrect work may disable the key.
