In this demonstration, KEYDIY KD-X4 is used to perform BMW BDC3 key duplication, while GODIAG For BMW FEM/BDC Programming Test Platform is used to verify both the original and newly generated keys before and after programming.

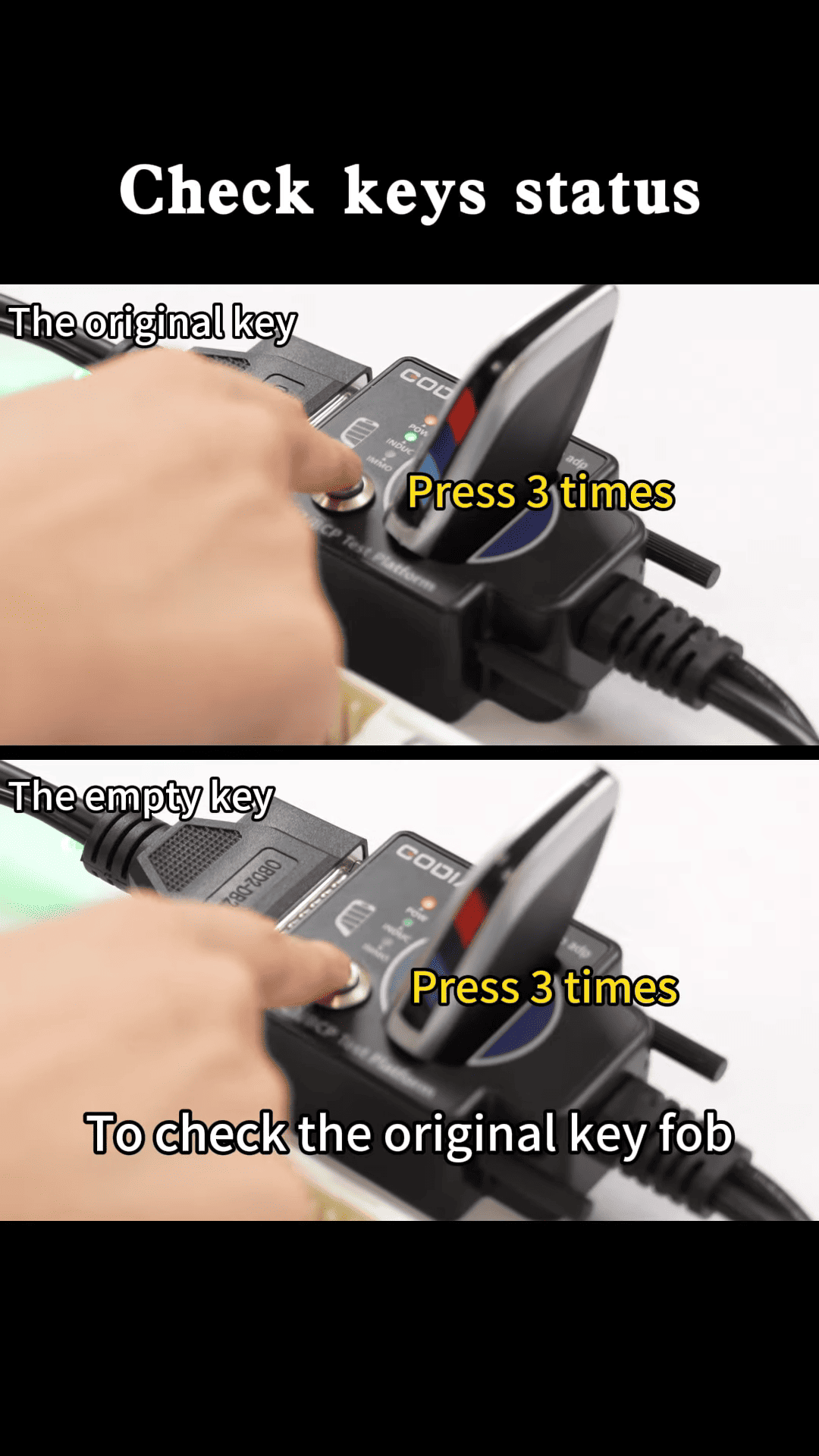

Technicians use GODIAG For BMW FEM/BDC Programming Test Platform, can quickly check whether the key is functioning properly and confirm communication status. This simple step helps avoid unnecessary troubleshooting later in the process.

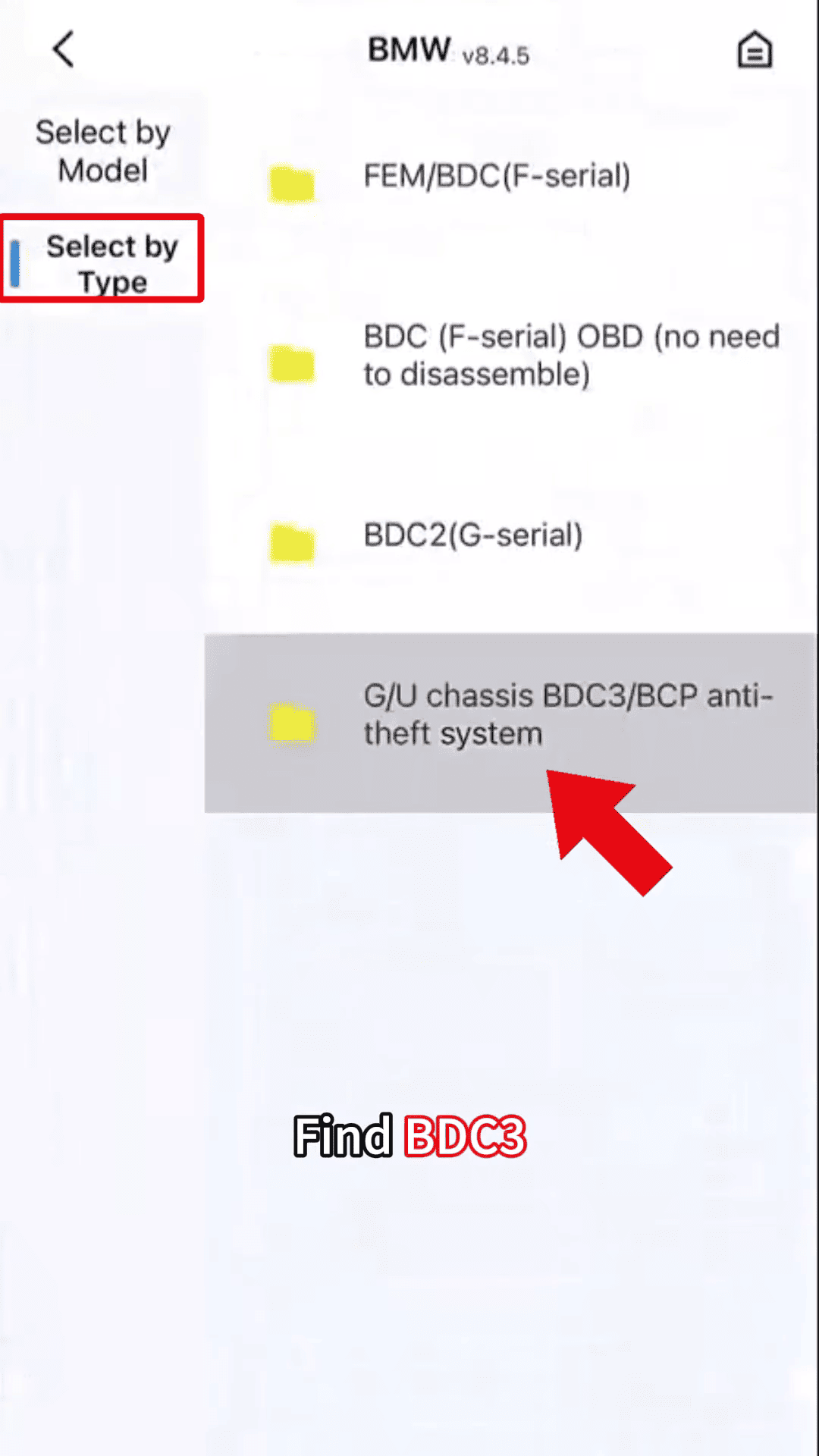

The KEYDIY KD-X4 provides dedicated BMW immobilizer functions, including support for BDC3 systems. After entering the [IMMO PROGRAMMING] → [BMW] menu and selecting the appropriate BDC3 option, the device guides users through the key data collection process.

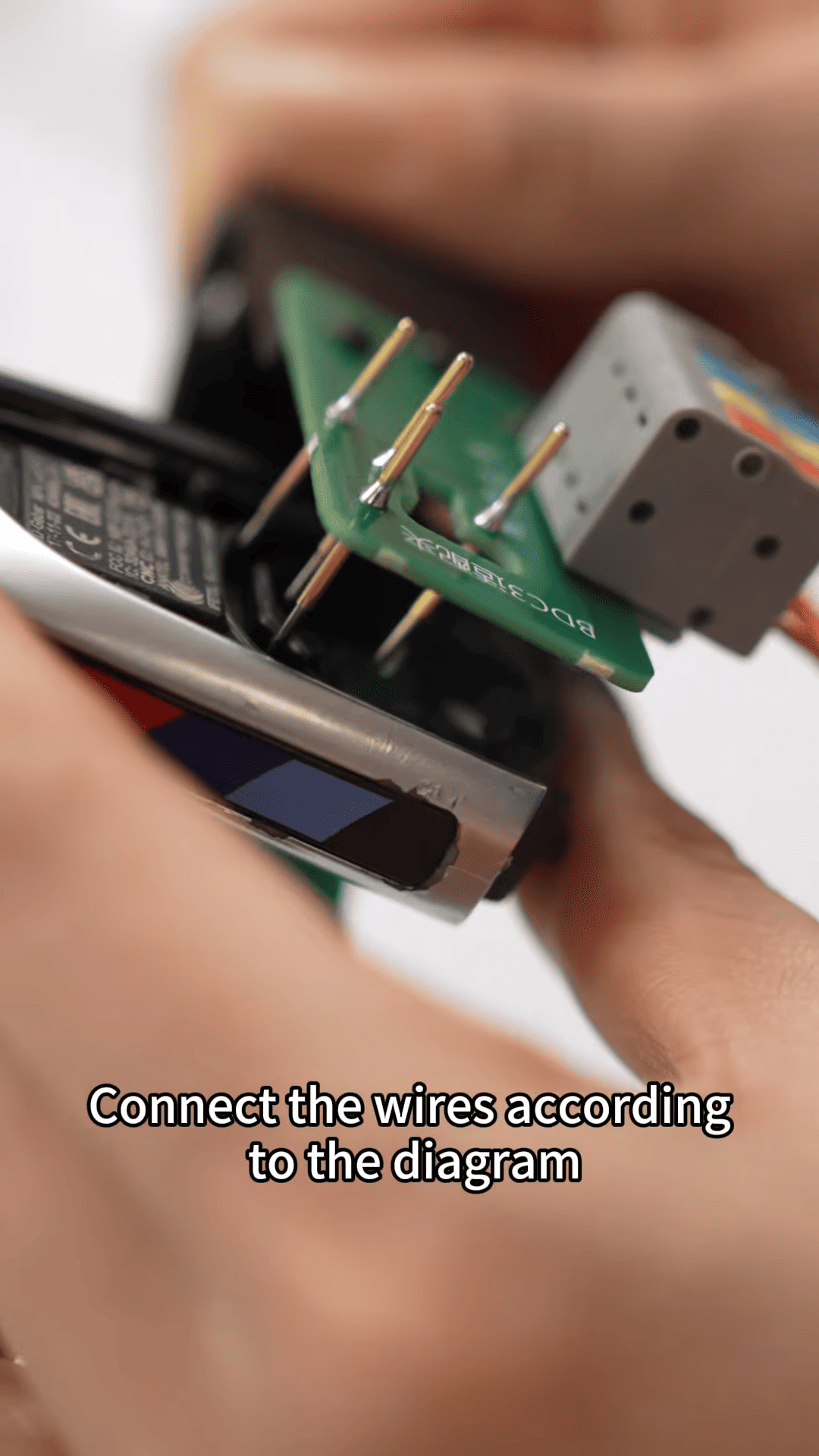

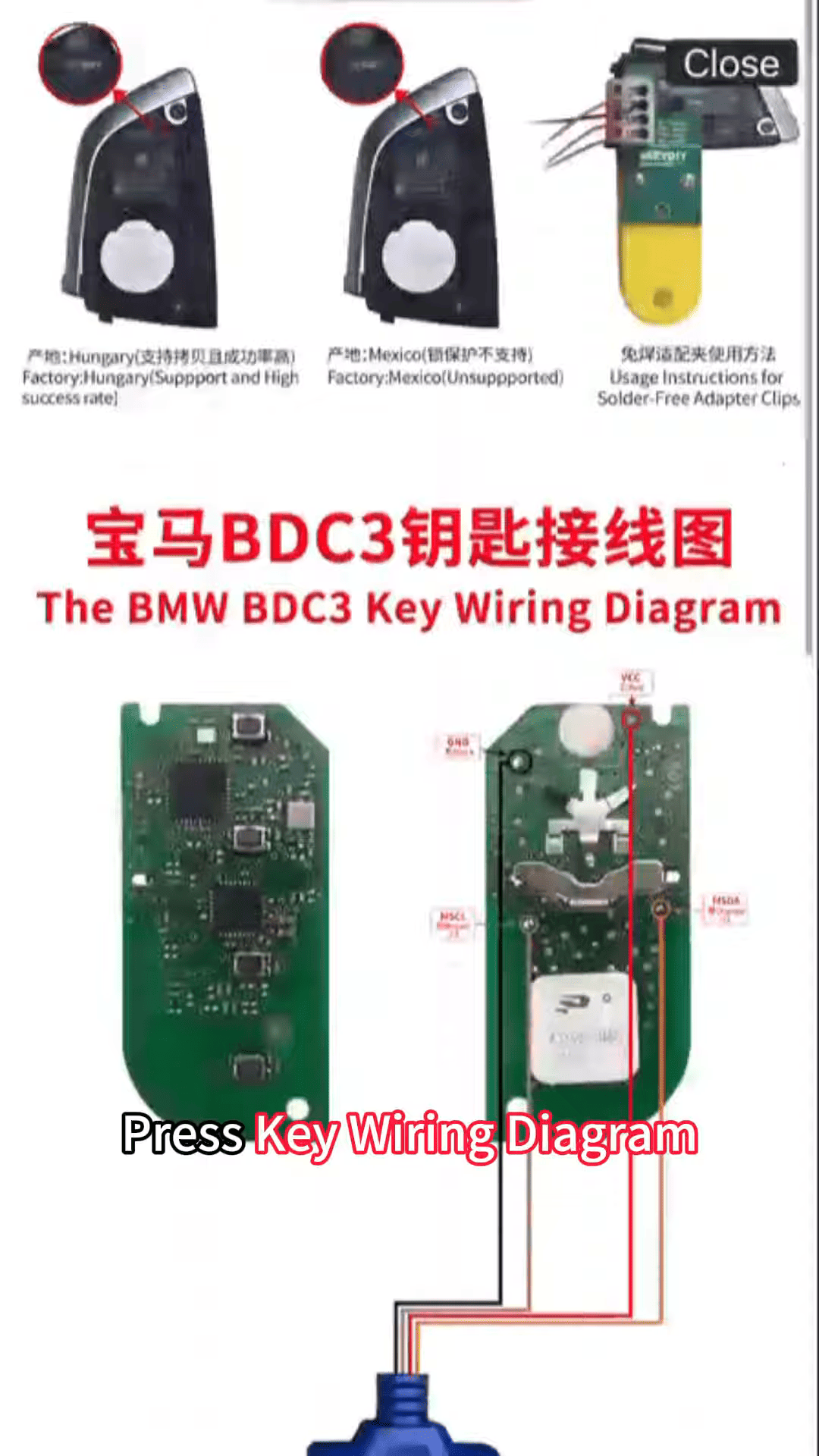

The original key must be opened and connected according to the wiring diagram displayed on the device. Once the wiring is completed correctly, KD-X4 Locksmith’s Universal Tool reads the original key data and saves the required file for key generation.
After the original key data has been successfully collected, the blank key can be placed in the programming area for generation.

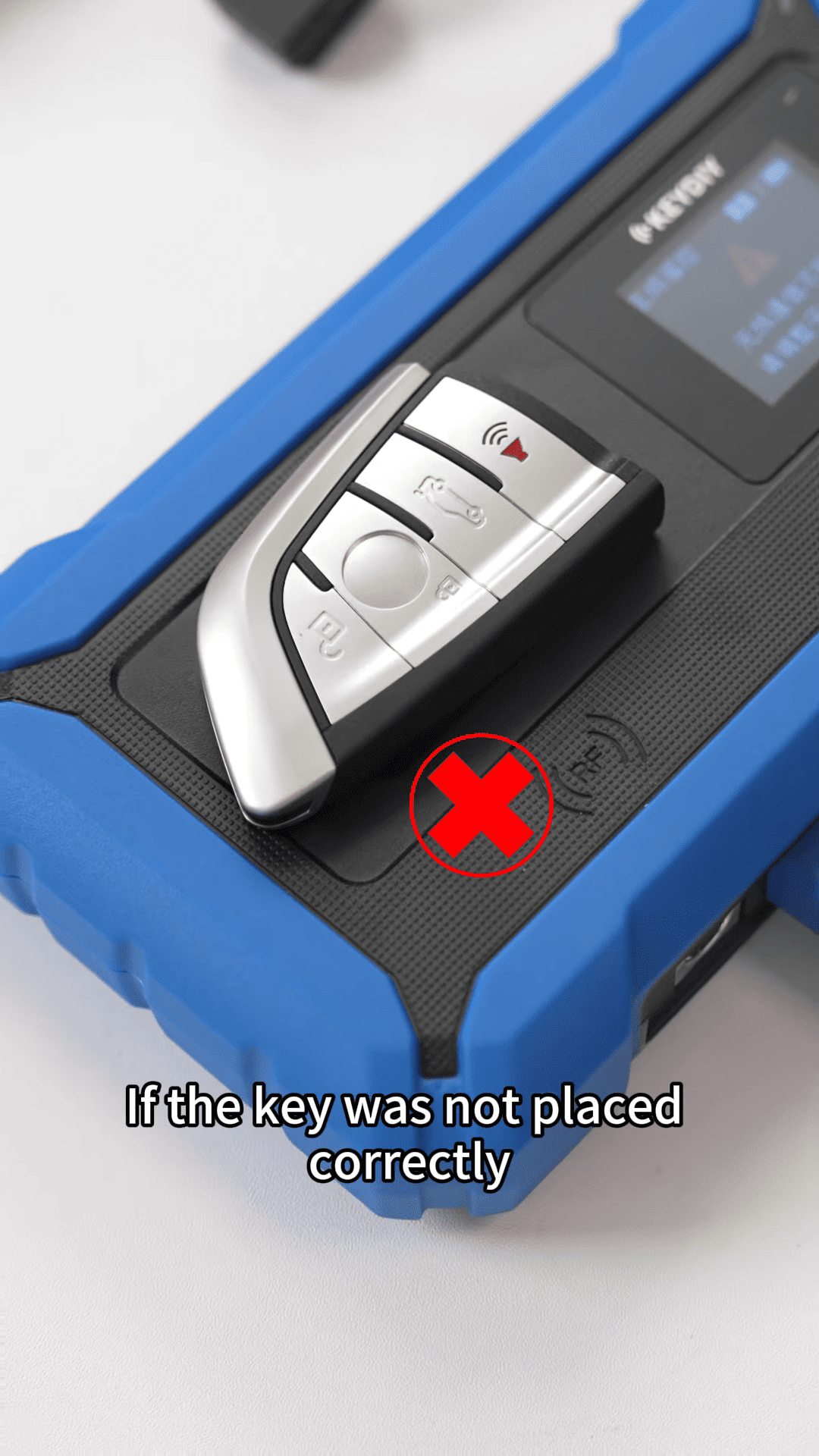

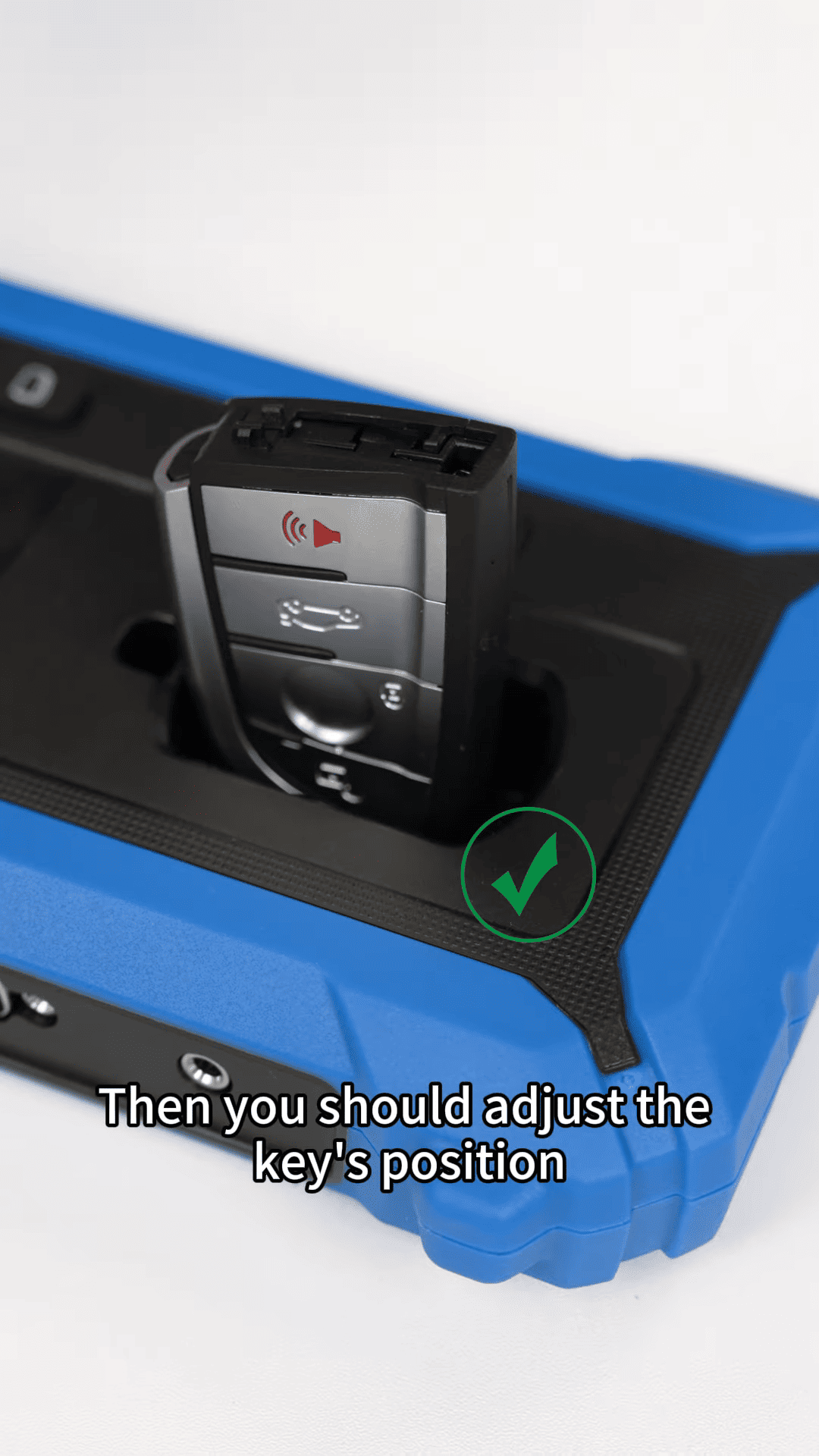

Proper positioning is important during this stage. If the key is not placed correctly, communication errors may occur during the generation process. Simply adjusting the key position typically resolves the issue.

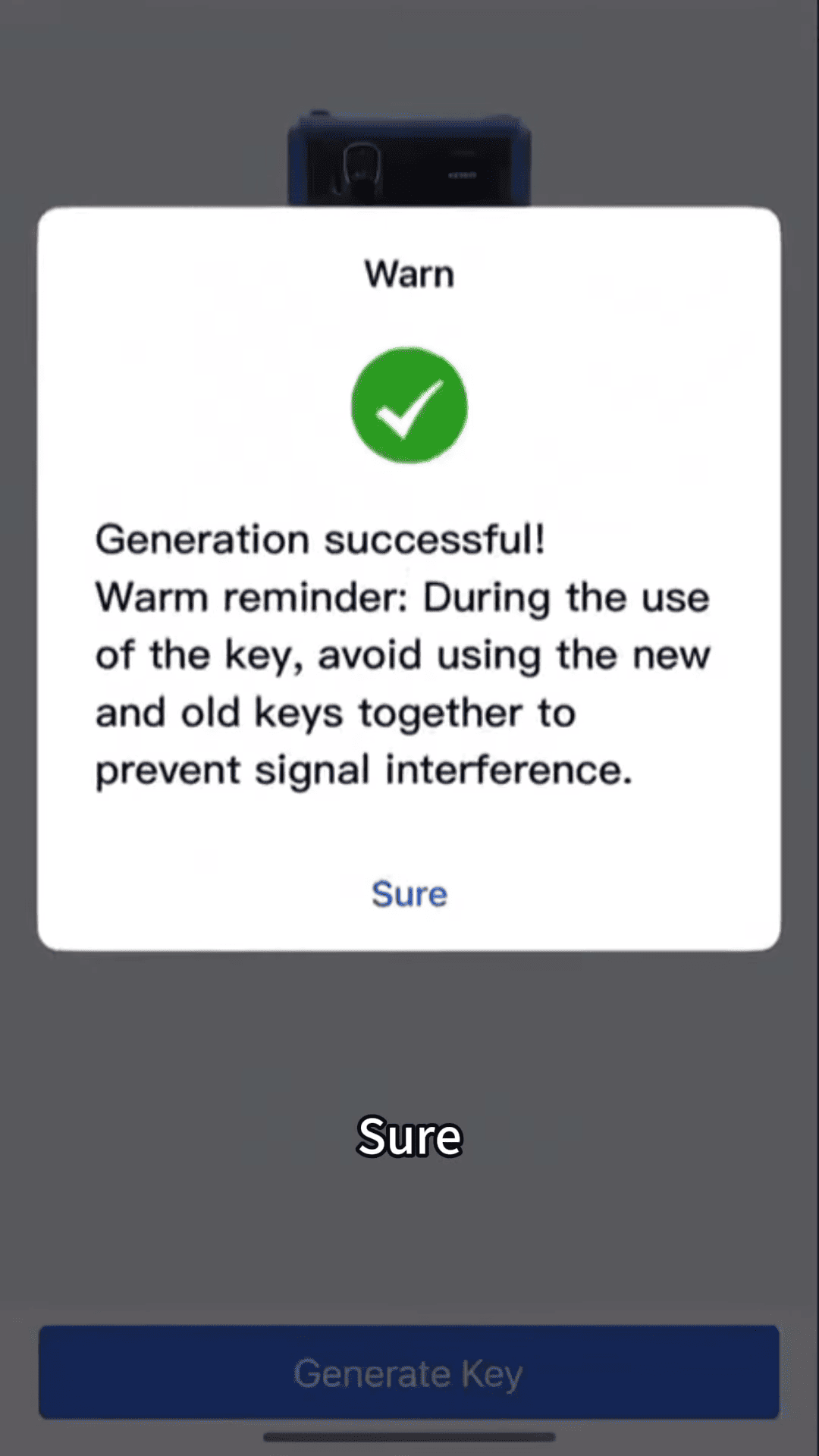

Once generation is completed, the new key contains the necessary data for BMW BDC3 operation.

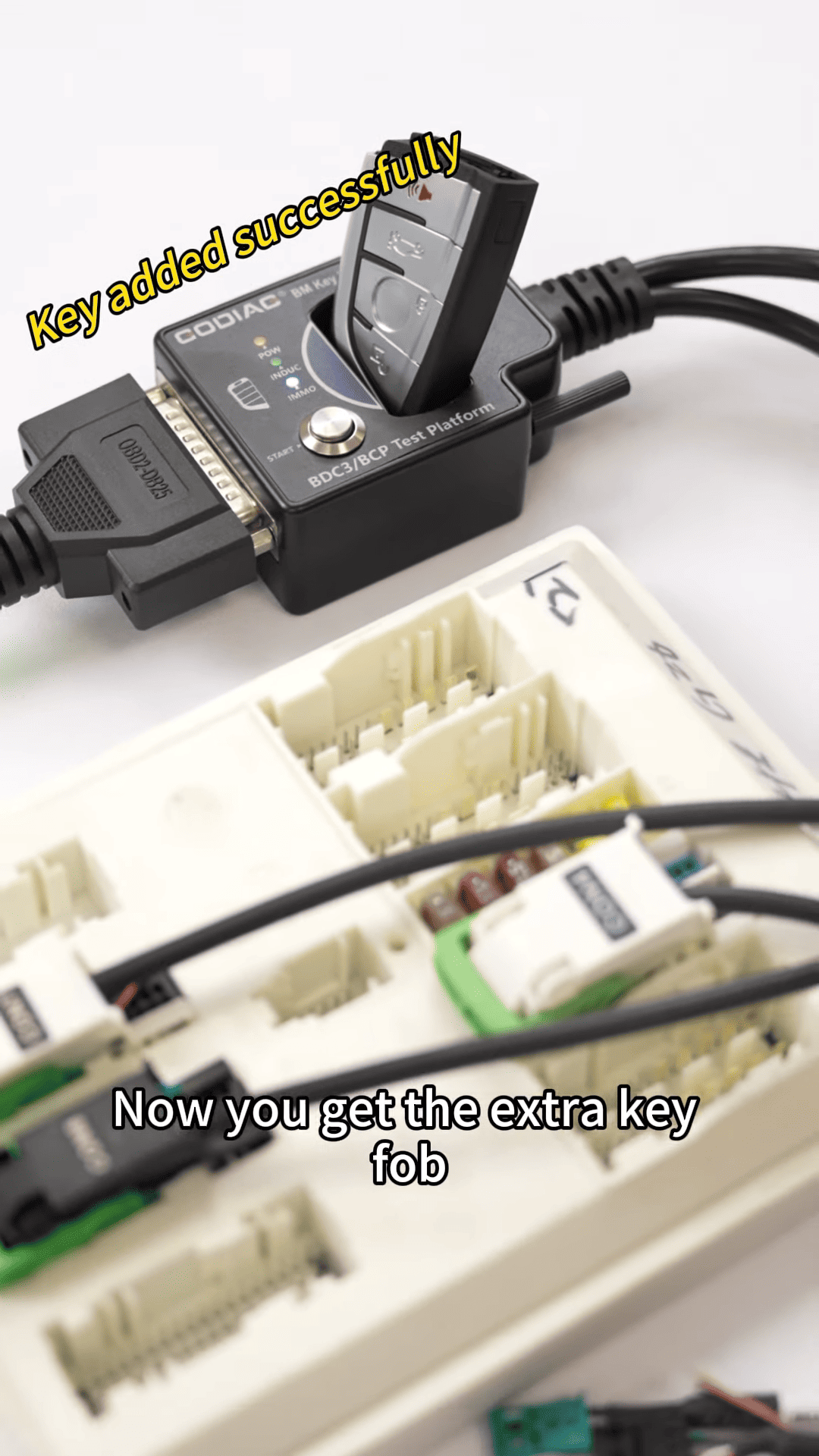

After programming, the newly generated key can be tested using GODIAG For BMW FEM/BDC Programming Test Platform.
This is all about this guide of BMW BDC3 Key Duplication Made Simple with KEYDIY KD-X4 key programmer. Follow me for more detailed instructions.
