How to Use KEYDIY KD-X4 and SPC560B60L3 Programming Socket for JLR?

Today we’ll walk you through how to write initialization data to the new Land Rover/Jaguar SPC560B60L3 chip using KEYDIY KD-X4 5-in-1 key programmer and Programming Socket.
keydiy kd x4 and spc560b60l3 programming socket user guide 1

Normally, when working with these chips, you’d have to replace the chip with a new one, solder wires onto it, plug it into a device to read data, and then write the initialization data.

But with this socket, you can skip the soldering step entirely. Here’s how it works:

Step-by-Step Guide:

1. Place Chip
Take the new SPC chip and align it correctly in KEYDIY Programming Socket.

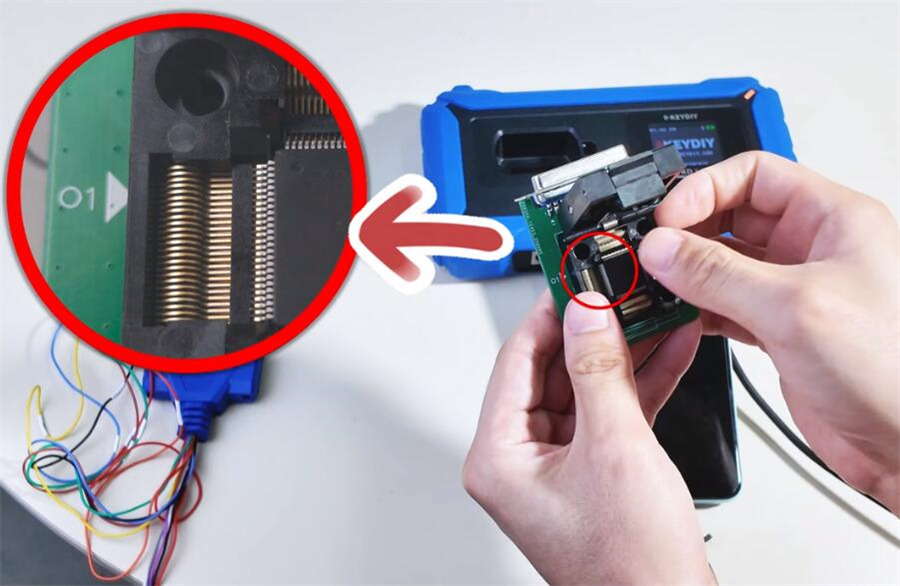

Look for the “Pin 1” mark on the socket—match it with Pin 1 on the chip.
Gently place the chip into the socket.
keydiy kd x4 and spc560b60l3 programming socket user guide 2

2. Close Lid
Once the chip is seated properly, close the socket lid securely.

3. Connect to Your Device
Plug the socket into your KD-X4 device (using the OTG cable, which is already connected).

4. Write Data
Open Immo programming on your device.

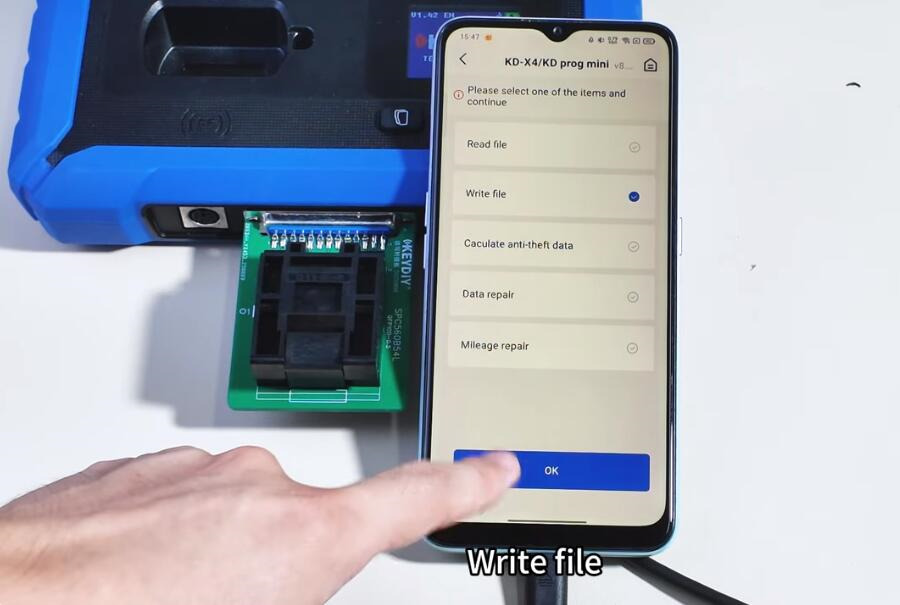

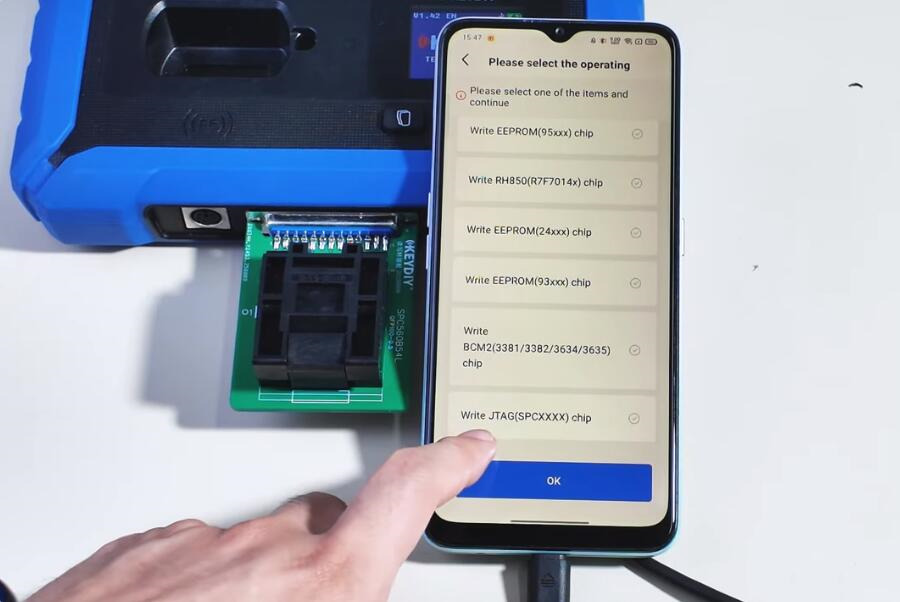

Select KD-X4/KD Prog mini→ Write File → Write JTAG (SPCXXXX) chip-> RFA writes initialization data

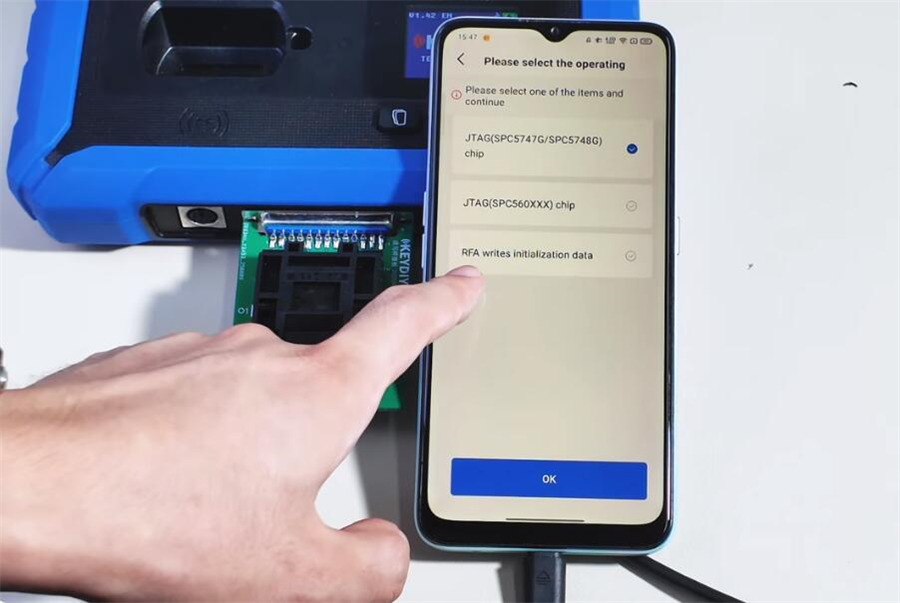

keydiy kd x4 and spc560b60l3 programming socket user guide 3 keydiy kd x4 and spc560b60l3 programming socket user guide 4 keydiy kd x4 and spc560b60l3 programming socket user guide 5

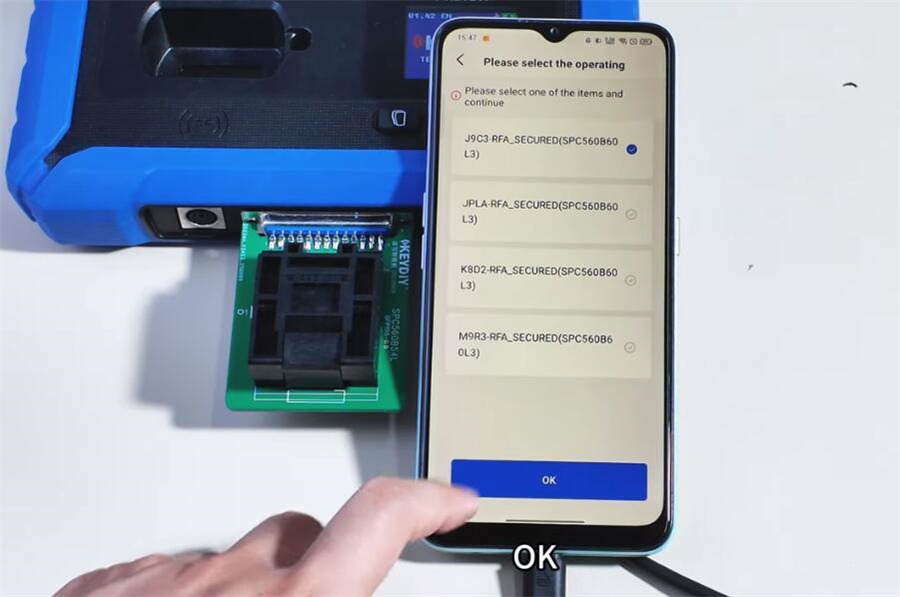

Choose the correct model data—in this case, the box model is J9C3
Select J9C3-RFA_SECURE (SPC560B60L3)
keydiy kd x4 and spc560b60l3 programming socket user guide 6

Confirm and start writing.
5. Complete the Process
Once the writing is done, remove the chip from Keydiy Programming socket.
Now solder it onto the circuit board as usual.
You’re ready to install it in the vehicle and move on to the next steps.

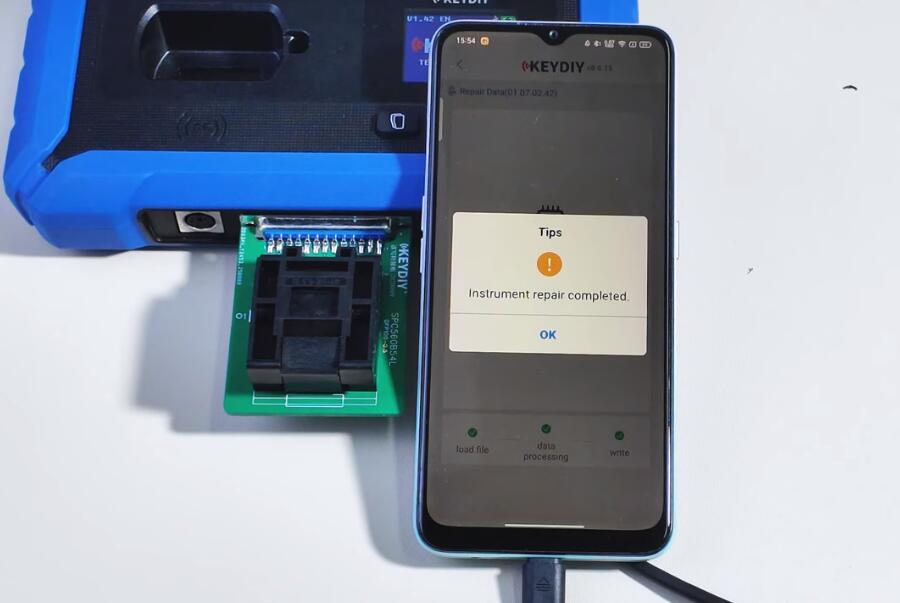

keydiy kd x4 and spc560b60l3 programming socket user guide 7

This Keydiy SPC560B60L3 Chip Programming Socket makes the job faster and solder-free—so you save time and avoid extra wiring. Give it a try!
