CGDI MLB Programmer enables OBD key matching, key reading, and dealer key generation for Porsche, Bentley, Audi, Volkswagen, and Lamborghini models on the MLB-EVO immobilizer platform. Complete key addition requires downloading CG-MLB Software (V1.3.1.0 or later), registering an online account, removing two capacitors from the original key PCB, connecting via harness/solderless adapter, and saving calculated IMMO data for matching.
Tool Capabilities & Specifications
- Supported Systems: MLB-EVO key programming, OBD key learning, dealer key generation, key ID modification.
- Coverage: Audi, VW, Porsche, Bentley, Lamborghini (MQB48 support scheduled for future updates).
- Software: CG MLB Software 3.1.0 (Languages: English, French, Simplified Chinese).
Setup & Account Registration
1. Software Installation:

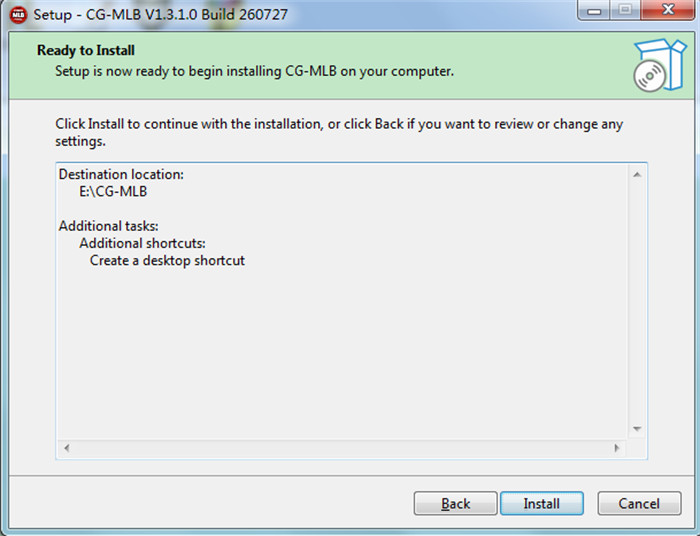

Extract the downloaded file and run CG-MLB_Setup_V1.3.1.0 Build 260727.exe
https://mega.nz/file/AuohSI4A#8XzIwt7xLHnZQysTc73SmpdhRaIESlnwN1rqh14znts

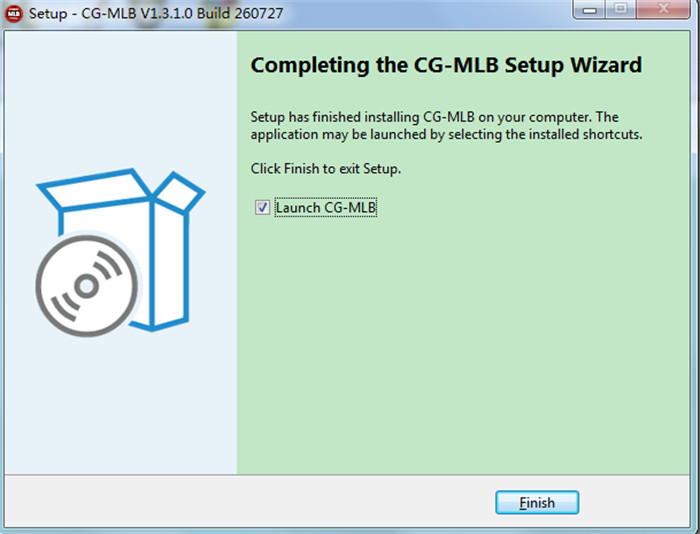

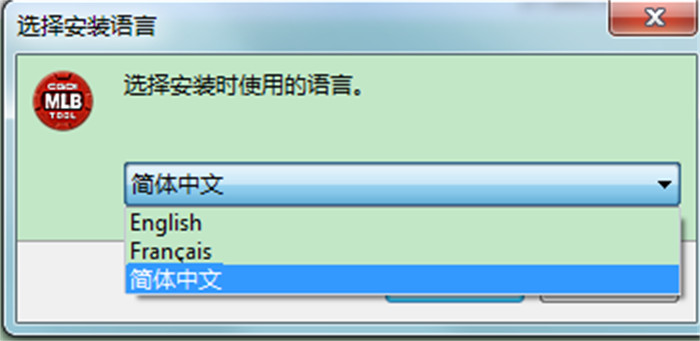

Select your preferred display language and complete installation.

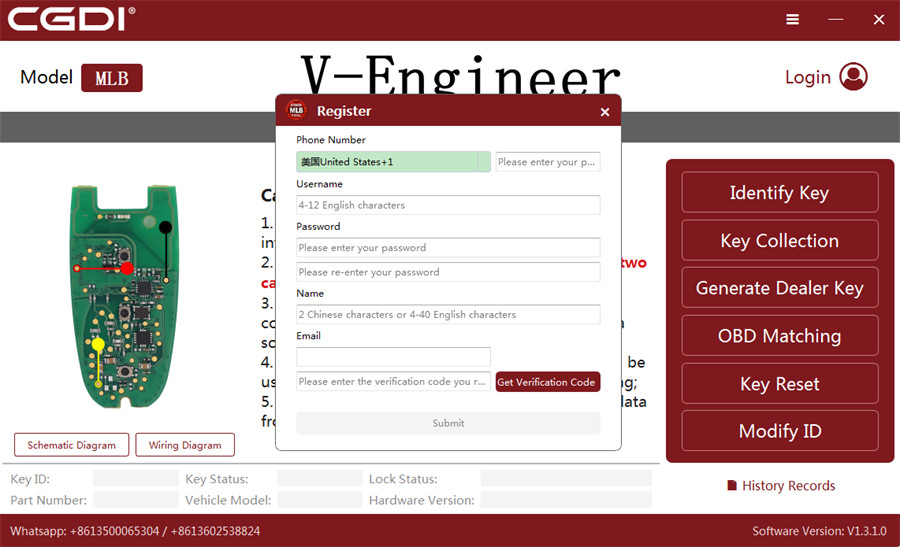

2.Account Creation:

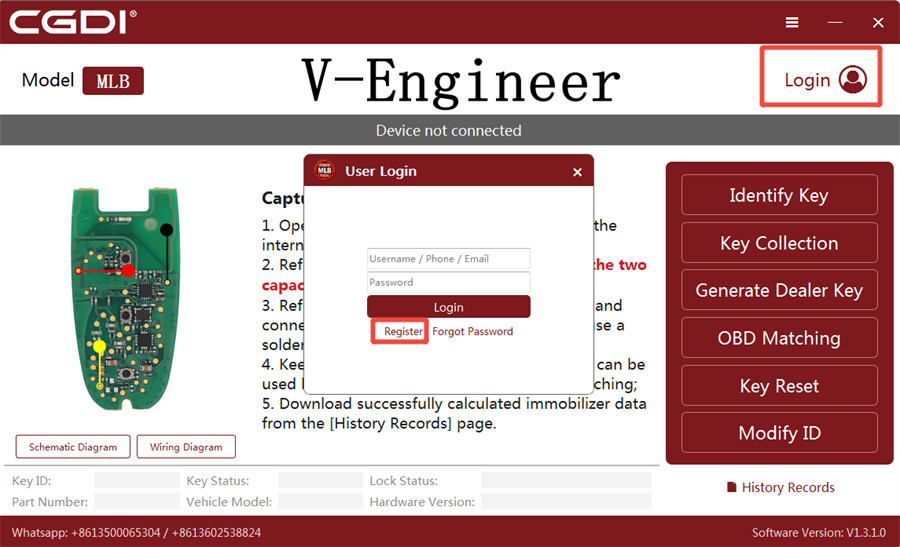

Open CG-MLB software, select Login in the top-right corner, then click Register
Input your phone number, username, password, full name, and email address.
Request a verification code via SMS or email, enter the code, and submit to complete account setup
Log in using your username/phone/email and password

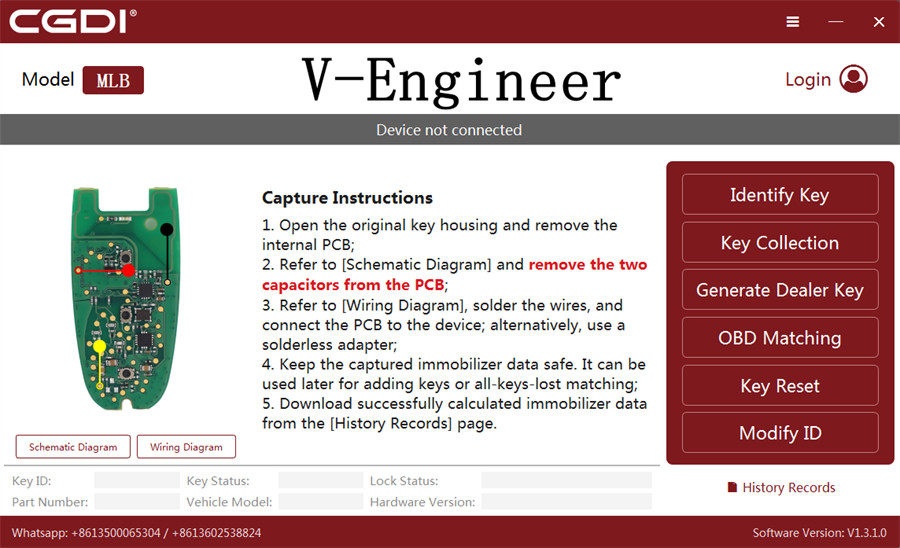

5-Step Key Programming Workflow
1. Open the original key housing and extract the PCB board.

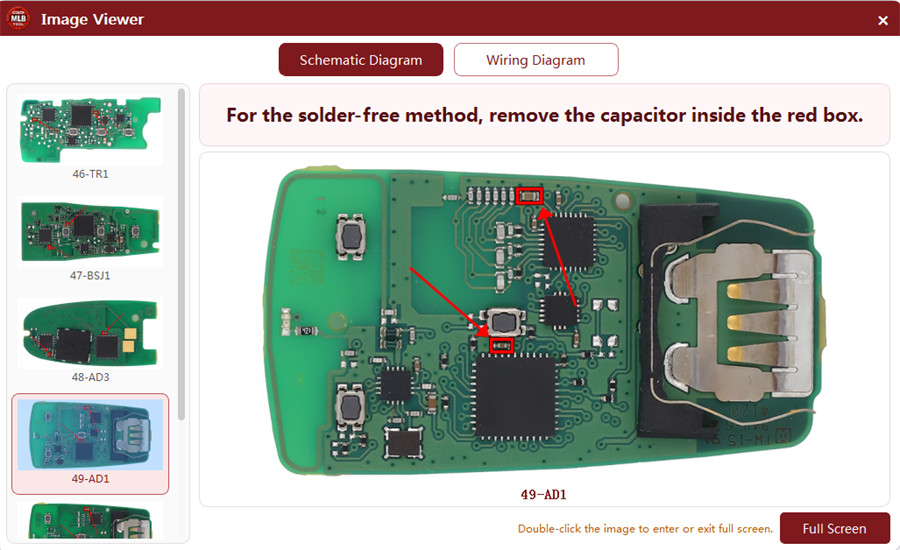

2. Locate the two designated capacitors on the PCB per the software schematic diagram and remove them.

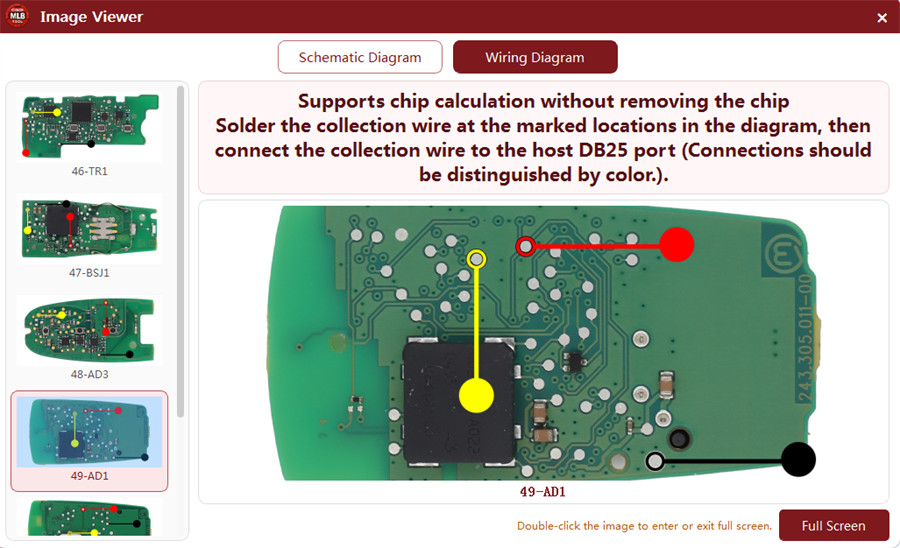

3. Solder the connection wires according to the wiring diagram (or connect using CG solderless adapter), then connect the collection wire to the host DB25 port (Connections should be distinguished by color).
4. Read and save the immobilizer data backup securely.
5. Download the calculated IMMO file from History Records to finalize dealer key generation and key matching.
