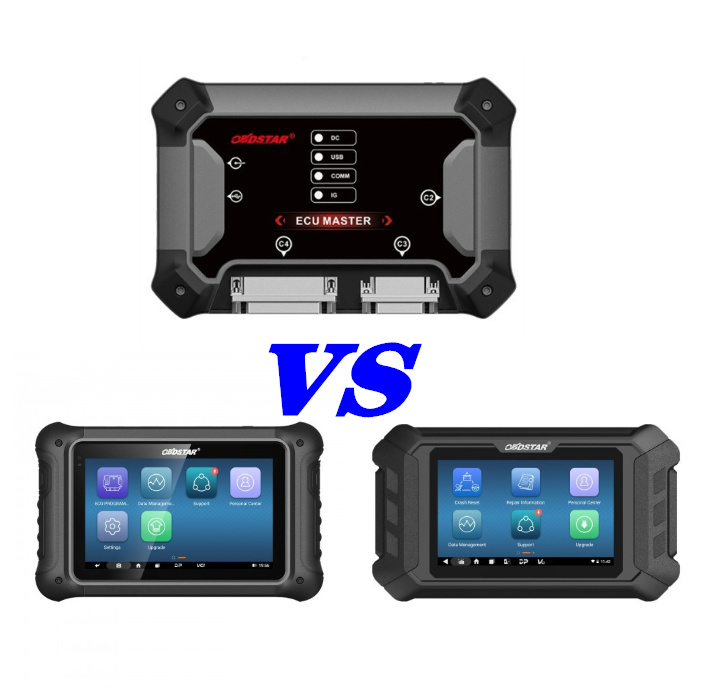

OBDSTAR ECU Master is a new, first professional PC-based ECU flasher for OBDSTAR.
But with the popular OBDSTAR DC706 and OBDSTAR P50 already on the market, how does this new newcomer stack up?
This article provides a clear, in-depth comparison to help you decide which tool best fits your business.
1. Product Positioning Overview
OBDSTAR DC706
DC706 is designed primarily for passenger vehicle ECU programming, offering three standard configurations:
- ECM (Engine Control Module)
- BCM (Body Control Module)
- TCM (Transmission Control Module)
It is a solid, focused solution for automotive locksmiths and repair technicians working mainly on cars.
OBDSTAR ECU Master
ECU Master adopts a modular and scalable architecture, making it far more versatile. It offers four independent configurations:
- ConfigurationA: Passenger cars + EV modules (ECM/BCM/TCM)
- ConfigurationB: Motorcycle ECM programming
- ConfigurationC: Heavy-duty diesel trucks & tractors (ECM/BCM/TCM)
- ConfigurationD: Airbag, BMS, and SAS reset functions
It also supports combined packages:
- Config uration A + B + C: Covers cars, EVs, motorcycles, trucks, and tractors
- ConfigurationA + B + C + D (Full Version): Adds airbag and safety module reset capabilities
OBDSTAR P50
P50 is a dedicated airbag reset tool, specifically designed for:
- Airbag crash data reset
- Safety module maintenance
Unlike ECU Master, it does not support ECU programming, making it a specialized rather than all-in-one solution.
2. Core Functional & Hardware Differences
Integrated Hardware vs External Accessories
One of the biggest differences lies in hardware design:
ECU Master
- Fully integrated system
- Built-in CAN FD protocol
- Includes P003+ and MP001 capabilities internally
- No need for additional adapters
DC706
Requires optional external adapters:
Higher long-term cost for full functionality
Conclusion: ECU Master provides a more streamlined and cost-efficient setup over time.
Motorcycle Diagnostics
ECU Master
- Dedicated Config Bfor motorcycle ECM programming
- Designed for future expansion in motorcycle diagnostics
DC706
- No motorcycle support
Conclusion: ECU Master is the only choice for motorcycle ECU work.
Commercial & Heavy-Duty Vehicle Support
ECU Master
- Supports diesel trucks and tractors (Config C)
- Covers ECM, BCM, and TCM
- Cost-effective alternative to high-end tools like:
Auto VEI (€13,000+)
The Genius (€8,000+)
DC706
- No support for trucks or tractors
Conclusion: ECU Master clearly dominates in commercial vehicle applications.
Airbag & Safety Module Reset
ECU Master
- Supports airbag, BMS, and SAS reset via Config D
- No need for extra hardware (even for CAN FD)
DC706
- Does not support airbag reset
- Requires a separate tool → OBDSTAR P50
P50
- Fully dedicated to airbag reset tasks
- Ideal as a supplementary device
Conclusion:
ECU Master = all-in-one solution
DC706 + P50 = split solution
Marine (Boat & Jet Ski) Support
DC706
- Supports marine ECMs
- Suitable for boat and jet ski repair
ECU Master
- No marine support (currently)
Conclusion: DC706 has a unique advantage in marine applications.
3. Which Tool Should You Choose?
Choose OBDSTAR ECU Master if you:
- Need all-in-one coverage(cars, EVs, motorcycles, trucks)
- Want built-in hardware without extra adapters
- Work with heavy-duty vehicles
- Require airbag/BMS/SAS reset functions
- Prefer a scalable, future-proof platform
Choose OBDSTAR DC706 if you:
- Focus mainly on passenger vehicles
- Need marine ECU support
- Already own or plan to buy external adapters
- Don’t require truck or motorcycle coverage
Choose OBDSTAR P50 if you:
- Specifically need airbag reset functions
- Already own DC706 and want to expand capability
- Prefer a dedicated safety module tool
4. Final Verdict
- OBDSTAR ECU Master Full Version is the most powerful and versatile solution, ideal for professionals who need wide coverage and integrated hardware.
- OBDSTAR DC706 ECU Tool remains a strong choice for car-focused technicians, especially those working with marine systems.
- OBDSTAR P50 Airbag Reset Tool is a specialized add-on tool, best used alongside DC706 for airbag services.
If you want maximum capability with minimal hassle, OBDSTAR ECU Master is the clear winner.
