OBDSTAR released C4-10 Adapter Kit, built specifically for reading and writing ECUs via BDM and JTAG modes. This hardware supports engine and transmission control units across passenger cars, heavy-duty trucks, and motorcycles.
What is in the package?

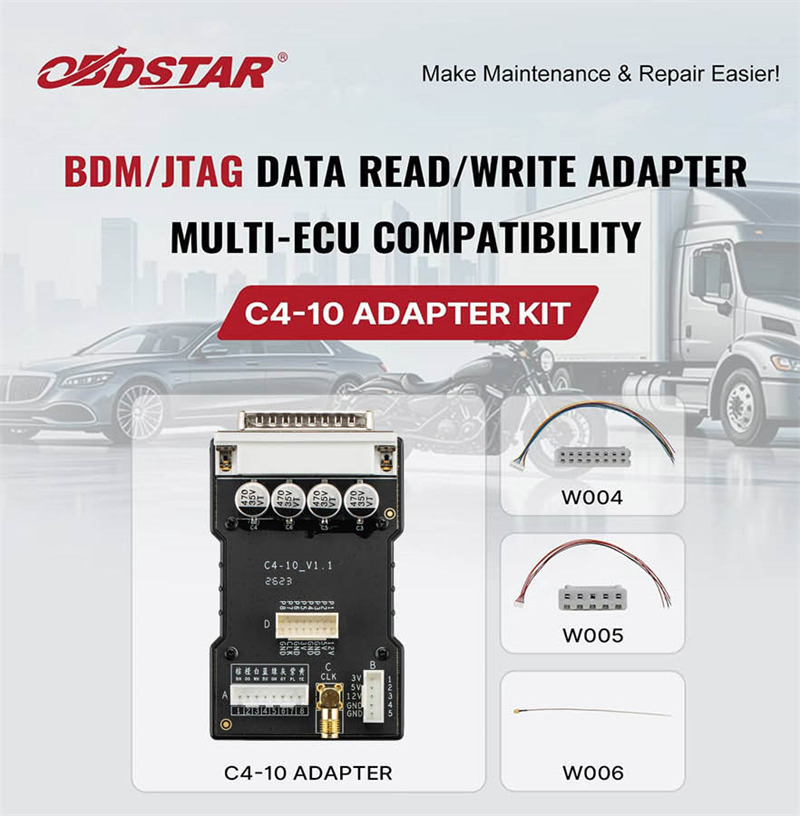

The complete package contains:
- C4-10 Main Adapter
- W004 Connection Cable
- W005 Connection Cable
- W006 Connection Cable
Which device is compatible with?
This OBDSTAR C4-10 Adapter Kit requires one of the following host tools to function:
- X300 Classic G3 Full Version (Key Master G3)/OBDSTAR G3+ ECU Cloning Software License
- DC706 ECU Tool
- ECU MASTER
Which ECU types are supported?
1. Supported ECU Models (JTAG Mode)
Passenger Cars:
- VGS4-0-NAG2
- VGS4-500-NAG2
Heavy Duty
- CPC3-MPC5566
- EEC3-MPC5567
- CPC3EVO-MPC5674
- COO8-MPC5674
- COO7-MPC5554
- PTM-MPC5554
- EMS S8-MPC5566
- EMS EMD1-MPC5566
- OPC5-MPC5566
- 3-MPC5674
- MP4(TCM)-MPC5644
- EBS4-MPC5554
- CM2150E-MPC5566
- CM2200A-MPC5566
- CM2350-MPC5674F
- ETC3-MPC5566
- A6E2-SPC5777
- CM1881-SPC564A80
- CM2150C
- A5E2V2I1-MPC5674F
- A5X12I1-MPC5674F+95512
- ATK-EM-EU6-SPC564A80
- 7AP-R5F72513BG
- A6E10-MPC5746R
- WISE15-SPC5634MMLQ80
- IAW 7GF-MPC5534+M95640
- 2-MPC5554
2. Supported ECU Models (BDM MODE)
Motorcycle
- 2-MPC555+DE28F800F3
- 7-MPC564+M58BW016DB
- 2-MPC564+M58BW016DB
- MS45-MPC555+AM29BL802CB
Heavy Duty
- EDC16C7-MPC555
- EMS S7-MPC563+S29CD016JB
- EBS5-MPC562+S29CD016JB+95640
- EDC7C32-MPC562+M58BW016XB+95640
- EDC7UC31-MPC562+M58BW016XB+95640
- EDC16CP31(CR4)-MPC564+M58BW016DB
- EMS2/EMS2 PG
- EDC7C3 MPC556 + 95640
- CM850-MPC555+AM29BL162CB
- MORE HD ECU SUPPORT COMING SOON
JTAG
- 62-MPC5566+25LC256
- EFI T6-MPC5534
- CM2180A-MPC5554
- 5-MPC5566
- ACM3-SPC564A70
BDM
- CM848E-MPC555+AM29BL162CB+AT25640
Note: Functions and supported ECU models depend on your specific device configuration.
